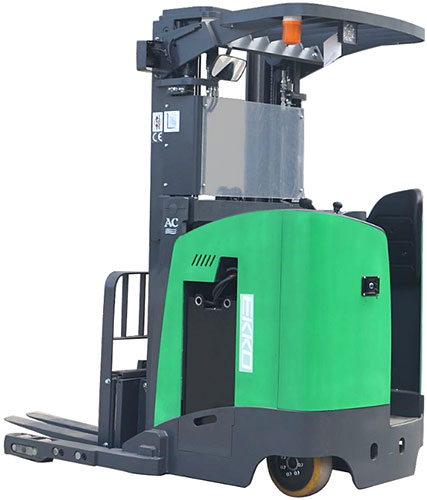

The Ekko EK18RR-196LI stand up reach truck is a lithium-ion battery powered reach truck that is designed to be the ideal combination of a standup forklift and walkie reach stacker. This versatile walkie reach truck is operated with the operator riding on the stacker in a standing position. Great for use in narrow isles in warehouses, in manufacturing environments, and on loading docks. Ekko reach stacker features a max. fork height of 196", extendable reach forks, width adjustable forks, tilting forks, side shifting forks, power steering, Curtis instrument controller, and LED head lights, brake lights, turn signals. Walkie Reach stacker comes standard with 48V 350Ah lithium-ion battery and 440v 3 phase (48v/200A) external direct connect charger. Travel speed is 5.6 m.p.h. fully loaded and lift speed is 7.48 i.p.s fully loaded. 48v 420Ah industrial battery and The Ekko EK18RR-196-LI stand up reach truck is constructed of robotically welded steel and industrial quality components for years of reliable service.
The capacity of the EK18RR-196LI Ekko stand up reach truck is rated at a 20" load center. Lift capacity will be reduced when lifting standard 48" long pallets which have a load center of 24".
Please check with HOF Equipment for a current lead time for the the Ekko EK18RR-196LI Stand Up Reach Truck.
Specifications:
- 48v 350Ah lithium-ion battery with 440v 3 phase 48v/200A external direct connect charger (both included)
- Reach truck with stand up rider operation
- Capacity at 20" Load Center (40"L pallet with evenly distributed load): 0" to 157" 3,960 LBS | 157" to 177" 3,520 LBS | 177" to 196" 3,080 LBS (side shifting forks reduces capacity by 330 LBS)

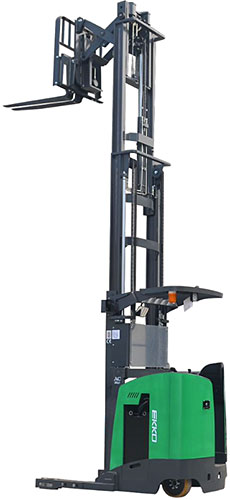

- Max. Raised Fork Height 196" (Free lift 53.1")
- Fork Reach Distance: 22.4"
- Side Shifting Forks
- Fork Tilt: 2° down / 4° up
- Collapsed Mast height is 96.4" / Fully Extended Mast Height is 240.9"
- Operator controls including steering wheel, lift/lower, fork reach & side shift, tilt, throttle, emergency stop button, battery discharge indicator, and horn located in the stand up cabin
- LED headlights, brake lights and turn signals
- Electronic power steering
- Gradability: 6% loaded / 10% unloaded
- 75" turning radius
- Fork width adjusts from 7.9” O.D. to 35” O.D.
- Individual forks are 45.5” long x 4.7” wide x 1.6” thick
- Curtis instrument controller
- Infinitely variable speed operation from 0 mph to 5.9 mph empty and 0 mph to 5.6 mph loaded. Travel speed is constant regardless of load.
- Lift speed is 9 i.p.s. empty and up to 7.5 i.p.s. loaded
- Lower speed is 11.8 i.p.s. empty and up to 9 i.p.s. loaded
- Drum brakes with electro-magnetic braking / electronic neutral braking for accurate control
- Polyurethane Drive Wheels 13.5" x 5.2" / Load Wheels 4.9" x 3.2"
- Collapsed Overall Size: 102.3"L x 54.7"W x 96.4"H
- Service Weight: 8,700 LBS
- Warranty: 1 year limited
