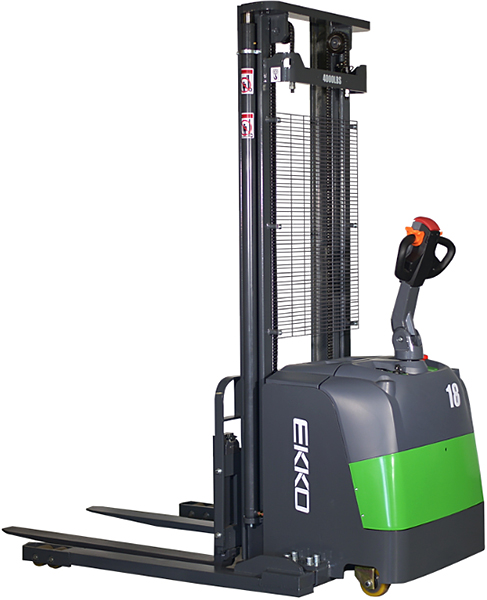

The Ekko EB18C-118Li straddle stacker is a Li battery powered drive and lift electric pallet stacker that features adjustable width forks and adjustable width legs allowing it to handle a vast array of pallet and skid types. This Ekko stacker is ideal for moving and stacking pallets and skids. 24v 90Ah lithium battery and a 24v 30 Amp external direct connect charger are included with unit. The steel mesh mast provides the user with a clear forward view. This pallet stacker features a 4,000 LB capacity at a 20” load center up to 63" (see capacities by height in specifications below), 118" max. lift height, 63" turning radius, and electric power steering. The ergonomic offset handle on this Ekko straddle stacker includes forward/reverse controls, speed controls, lift/lower controls, auto-reverse safety belly button switch, and horn. A 7 kW drive motor propels the stacker at 2.0 mph loaded and 2.4 mph unloaded. A 3 kW lift motor raises loads at 2.95” per second loaded and 3.54” per second unloaded. The Ekko EB18C-118Li straddle stacker features all robotically welded steel construction and an I-beam mast for years of reliable service.
For shipping cost and a current lead time, please add the Ekko EB18C-118Li stacker to the cart and request a quote.
Specifications:
- Capacities At 20" Load Center (40" pallet with evenly distributed load): 4,000 LBS 2.56" to 63" | 3,080 LBS 63" to 98" | 2,420 LBS 98" to 118"
- 2.56" lowered fork height / 118" max. raised fork height
- 24v 90Ah lithium battery with 24v 30 Amp external direct connect charger are included

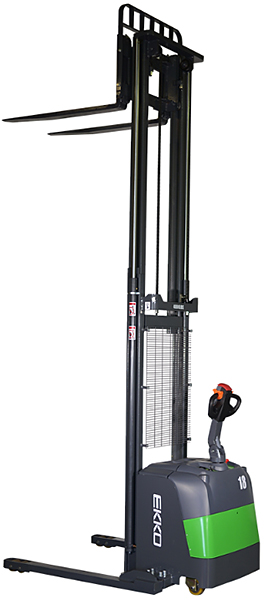

- Collapsed Mast height is 80" / Fully Extended Mast Height is 147.3"

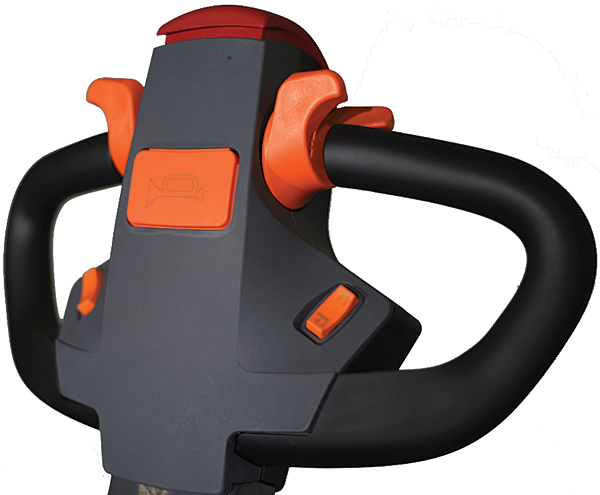

- Ergonomic handle contains throttle, forward/reverse, lift/lower controls, safety reversing belly switch, and horn
- 62.8" turning radius
- Curtis controller, battery discharge indicator combination gauge / key switch
- Fork width adjusts from 8.7” O.D. to 32” O.D.
- Individual forks are 45.3” long x 5.6” wide
- Legs width adjusts from 19.8"W I.D to 55.5"W I.D.
- A 1.5 kW drive motor produces infinitely variable speed operation from 0 mph to 2.4 mph empty and 0 mph to 2.0 mph loaded. Travel speed is constant regardless of load.
- Lift speed is 3.54 i.p.s. empty and up to 2.95 i.p.s. loaded
- Lower speed is 2.75 i.p.s. empty and up to 3.34 i.p.s. loaded
- Climbing Capability On Grade: 3% Grade When Loaded / 10% Grade When Empty
- Minimum Ground Clearance: 1.2"
- Electric power steering
- Electro-magnetic braking for enhanced stopping power / Electronic neutral braking for accurate control
- Service Weight: 2,270 LBS
- Warranty: 1 year limited
