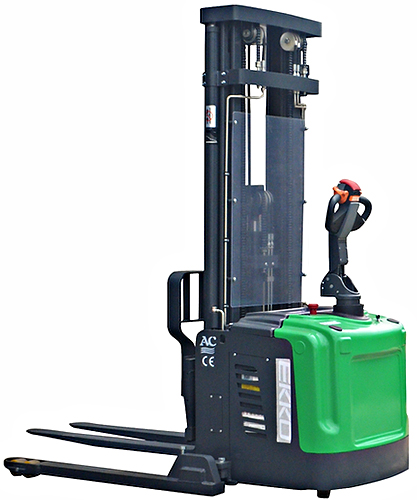

The Ekko EB16EAS-189LI pallet stacker with side shift is a lithium-ion battery powered drive and lift electric pallet stacker that features side shifting forks, adjustable width forks, and adjustable width legs allowing it to handle virtually any type of pallet or skid. This Ekko stacker is ideal for moving and stacking pallets and skids. A powerful 24v 210Ah Li-ion battery and 110v charger are included with the stacker. The metal mesh mast provides the user with a clear forward view. Pallet Stacker features a 4,400 lb capacity at a 24” load center up to 63" (see capacities by height in specifications below), 189" max. lift height, 68.5" turning radius, and electric power steering. The ergonomic offset handle on this Ekko walkie stacker includes the following controls: forward/reverse, lift/lower, side shift, auto-reverse safety belly button switch, and horn. A 1.5kW drive motor propels the stacker at 3.0 mph loaded and 3.3 mph unloaded. A 3kW lift motor raises loads at 3.6” per second loaded and 5.4” per second unloaded. The EB16EAS-189LI Ekko pallet stacker features all robotically welded steel construction for years of reliable service.
Please contact HOF for a current lead time for the EB16EAS-189LI Ekko stacker.
Specifications:
- Side shifting forks 4.7"
- Capacities At 24" Load Center (48" pallet with evenly distributed load): 4,400 LBS 1.57" to 63" | 2,640 LBS 63" to 118" | 1,700 118" to 138" | 1,320 LBS 138" to 157 | 880 LBS 157" to 189"
- 1.57" lowered fork height / 189" max. raised fork height
- 24v 210Ah Li-ion battery with 110v (24v 30A) external direct connect charger are included
- Collapsed Mast height is 88.9" / Fully Extended Mast Height is 227"
- Free lift (distance forks will raise before mast starts to raise): 51.85"
- Ergonomic handle contains throttle (includes turtle mode), forward/reverse, lift/lower controls, side shift controls, safety reversing belly switch, and horn
- A 1.5kW drive motor provides infinitely variable speed of 0 mph to 3.3 mph empty and 0 mph to 3.0 mph loaded. Travel speed is constant regardless of load
- Gradability: Max .8% loaded / 5% unloaded (forks must be lowered on slope)
- Electric power steering
- 68.8" turning radius
- Ground clearance is .95"
- Curtis instrument controller, battery discharge indicator combination gauge / key switch
- Fork width adjusts from 10.48"W I.D. (15.2” O.D.) to 19.93"W I.D. (24.65” O.D.)
- Individual forks are 45.27” long x 4.72” wide x 1.58” thick
- Legs width adjusts from 39.4"W I.D (47.8"W O.D.) to 53.1"W I.D. (61.5"W O.D.)
- Lift speed is 5.4 i.p.s. empty and up to 3.6 i.p.s. loaded
- Lower speed is 3.8 i.p.s. empty and up to 4.4 i.p.s. loaded
- Electro-magnetic braking for enhanced stopping power / Electronic neutral braking for accurate control
- Service Weight: 3,520 LBS
- Warranty: 1 year limited
