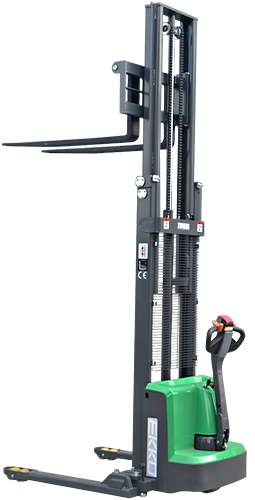

The Ekko EB13ES-145LI pallet stacker with side shift is a lithium-ion battery powered drive and lift electric pallet stacker that features side shifting forks, adjustable width forks, and adjustable width legs allowing it to handle virtually any type of pallet or skid. This Ekko pallet stacker is ideal for moving and stacking pallets and skids. The metal mesh mast provides the user with a clear forward view. Ekko walkie pallet stacker features a 2,640 LB capacity at a 24” load center up to 98 (see capacity at all lift heights in specifications below) ", 145" max. lift height, and a tight 52.6" turning radius for maneuverability in tight aisles. The ergonomic offset handle on this Ekko stacker includes throttle control, forward/reverse, lift/lower, side shift, turtle mode switch, auto-reverse safety belly button switch, and horn. A .75kW drive motor propels the stacker at 3.0 mph loaded and 3.3 mph empty. A 2.2kW lift motor raises loads at 3.6” per second loaded and 5.4” per second unloaded. A 24v 50Ah Li-ion battery plus 110v integral charger are included. The EB13ES-145LI Ekko walkie stacker features all robotically welded steel construction for years of reliable service.
Please contact HOF for a current lead time for the EB13ES-145LI Ekko stacker with side shift.
Specifications:
- Side shifting forks
- Capacity At 24" Load Center (48"L pallet with evenly distributed load): 2,640 LBS 2.35" to 98" | 1,980 LBS 98" to 118" | 1,100 LBS 118" to 145" (side shifting the forks reduces the capacity by 480 LBS at all heights)
- 2.35" lowered fork height / 145" max. raised fork height
- Collapsed Mast height is 95.7" / Fully Extended Mast Height is 167"
- Turtle mode switch to slow down the stacker's speed for precise load positioning
- Ergonomic handle contains throttle, turtle mode switch, lift/lower controls, side shift controls, safety reversing belly switch, and horn
- Infinitely variable speed operation from 0 mph to 3.3 mph empty and 0 mph to 3.0 mph loaded. Travel speed is constant regardless of load.
- High quality Curtis controller
- 52.6" turning radius for use in tight areas
- 24v 50Ah Li-ion battery with 110v integral charger included
- Battery discharge indicator combination gauge
- Fork width adjusts from 8.3” O.D. to 33.5” O.D.
- Individual forks are 45” long x 3.9” wide x 1.38” thick
- Legs width adjusts from 45.7"W O.D to 59.1"W O.D.
- Lift speed is 5.4 i.p.s. empty and up to 3.6 i.p.s. loaded
- Lower speed is 3.8 i.p.s. empty and up to 4.4 i.p.s. loaded
- Electro-magnetic braking for enhanced stopping power / Electronic neutral braking for accurate control
- Service Weight: 1,635 LBS
- Warranty: 1 year limited
