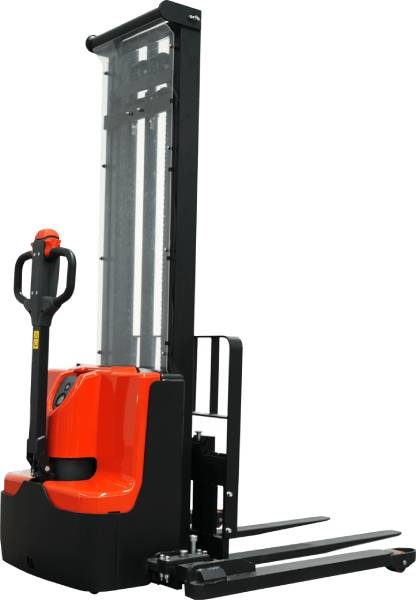

The Ballymore Stacker BALLYPAL22LSL138 is a full featured, powered drive / powered lift pallet stacker with a 2,200 LB lift capacity and a 138" max lift height. This Ballymore stacker has an overall fork width of 18" to 39-1/2". Unit operates on a two 12V 85Ah batteries and comes with a 110v built-in charger. Battery discharge gauge and lock-out setting to optimize battery life. Stacker has a fork length of 45" and a fork width of 4". Mesh protection screen for operator safety during use. The lowered mast height is 88" and fully raised extended mast height is 158". Pallet stacker is protected by a robust chassis and apron. Travel speed ranges from from 2.3 MPH to 2.5 MPH and ability to operate on a grade is rated at 5% loaded and 10% unloaded. Made with the highest quality industrial components for years of reliable service.
The BALLYPAL22LSL138 Ballymore Stacker has an estimated lead time to leave the warehouse of 3 to 5 business days.
Specifications:
- Powered Drive / Powered Lift
- Capacity: 2,200 LBS
- Lowered Fork Height: 1.6" | Max. Raised Fork Height 138"
- Lowered Mast Height: 88" | Fully Extended Mast Height: 158"
- Overall Fork Width Adjustment: 18” to 39-1/2”
- Overall Leg Width Adjustment: 46” to 58” O.D.
- Travel Speed: 2.3 to 2.5 MPH
- Gradeability: 5% loaded | 10% unloaded
- (2) 12V 85 Ah batteries and built-in 110v charger
- Battery discharge indicator and lock-out setting to optimize battery life
- Individual Fork Size 4"W x 45"L
- Overall Size: 46"W x 71"L x 88"H Collapsed
- Weight: 1,655 LBS
