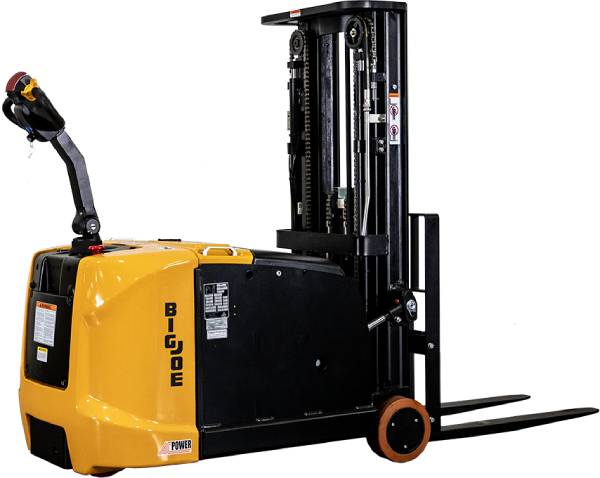

The Big Joe CB30-126 Counterbalance Pallet Stacker is a powered drive and powered lift pallet stacker with adjustable forks allowing it to handle virtually any type of pallet or skid. The CB30-126 features a counterbalance instead of front support legs providing for a tight 56" turning radius, narrower profile, and increased maneuverability. Perfect for loading and unloading trucks, pallet stacking, and positioning loads. This counterbalanced pallet stacker has a 3,000 LB capacity at 24" load center, a 126" lift height, and a carriage that tilts the forks 7.5° back and 2.7° forward. Drive speed is infinitely variable from 0 mph to 3.0 mph fully loaded and 3.2 mph empty. The powerful lift motor raises loads at 26 feet per minute loaded and 33 feet per minute empty. An ergonomic, gas assist spring handle controls speed and lift with left or right hand, and features an auto-reverse safety belly button switch. The Big Joe CB30-126 counterbalance stacker is all steel construction with a welded rigid steel chassis for years of reliable service. Optional side shifting forks available - see options chart below
The Big Joe CB30-126 Counterbalance Pallet Stacker has an estimated lead time to leave the warehouse of 5 to 7 business days.
Specifications:
- Optional side shift available - see options chart below
- Capacity at 24" load center: 3,000 LBS
- Max. raised fork height 126"
- Battery Options: STANDARD (4) 6V 224Ah AGM batteries with 120VAC/25A built-in internal smart charger for light to medium duty use | LITHIUM 205 Ah LFP battery with 120VAC/30A built-in internal smart charger for medium duty use | INDUSTRIAL 255Ah industrial battery option with 120VAC/25A external smart charger for medium to heavy duty use - See Chart Below
- Gas assist spring handle with finger tip controls, safety reversing belly switch, and horn
- Key switch, battery discharge gauge, hour meter
- Individual tapered forks are 42” long x 4” wide x 1.5" thick
- ITA class II fork carriage with 36” tall load back rest
- Carriage/forks tilt 7.5° back and 2.7° forward
- Infinitely variable speed from 0 mph to 3.2 mph empty and 0 mph to 3.0 mph loaded
- Crawl speed travel control for precise positioning
- Gradability: 5% loaded / 8% unloaded
- Anti-roll back and regenerative “neutral” braking
- Lift speed is up to 33 fpm empty and up to 25 fpm loaded
- Lower speed is up to 32 fpm empty and up to 36 fpm loaded
- Collapsed Size: 35.4"W x 62.6"L x 83.4"H
- Weight: 4,598 LBS
- Warranty Summary (request full warranty for all details): 24 month or 730 day or 2000 hour parts only limited warranty on frame weldments & powertrain | 12 month or 1000 hour parts only full truck limited warranty excluding wearables | 6 month or 180 day or 1000 hour parts and labor full truck limited warranty excluding wearables | Battery warranty on request
