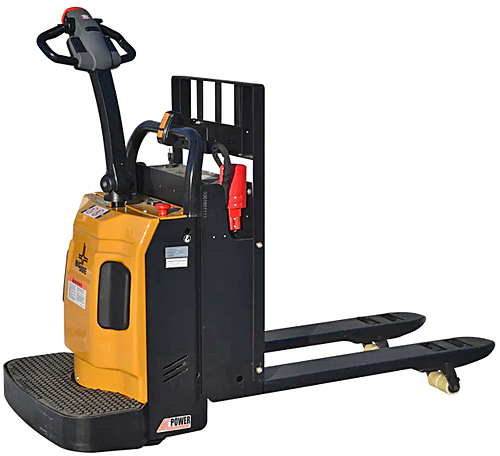

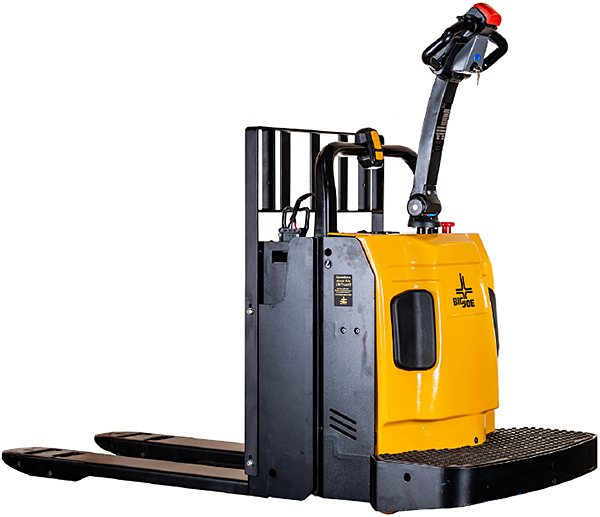

The Big Joe RPL44-2736 is an electric pallet jack with a large operator platform which allows the user to ride on the pallet truck during operation. With a maximum capacity of 4,400 LBS and 27" x 33.5" forks, this Big Joe pallet jack can handle heavy loads with ease. The low profile forks are just 2.9" high when collapsed, allowing entry to low pallets. An integrated 205Ah lithium battery with an integral 120V AC charger powers a 24V AC drive motor, carrying the rider pallet jack with variable speeds from 0 to 5 m.p.h. empty and from 0 to 4.5 m.p.h. when loaded. The ergonomic handle provides electronic power steering, while lift and lower switches are found both on the steering handle and on the grab rail. The Big Joe RPL44-2736 rider pallet jack is the ideal solution for a variety of industries and workplaces.
The Big Joe rider pallet jack RPL44-2736 is a special order item, please add to cart and request a quote for current estimated lead time and shipping cost.
Specifications:
- 7.9" high operator step with rubber cushioned platform
- Maximum capacity: 4,400 LBS

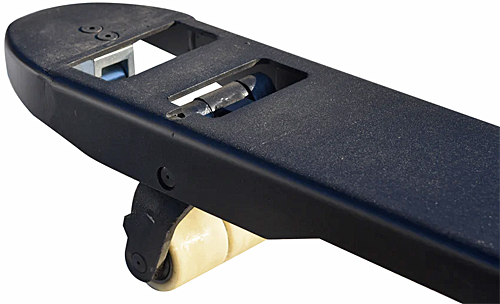

- 27"W x 33.5"L low profile forks with heavy-duty adjustable pull rods
- Fork service range: 2.99" to 4.7"
- 12V DC outlet & USB port for onboard power to accessories
- Control handle features butterfly forward/reverse switches, lift/lower, horn, safety reverse
- High Speed grab bar has duplicate lift/lower/horn controls
- Battery discharge meter / hour meter / emergency power disconnect switch /key switch for power on/off
- UL recognized integrated 205Ah lithium (LFP) battery with integral 120V AC charger
- 24V AC drive motor
- Variable speeds from 0 to 4.5 m.p.h. loaded or 5 m.p.h. empty
- Gradeability: 16% without load, 6% with load
- 75.9" turning radius
- (1) 9" dia. polyurethane drive wheel, (2) 5.12" dia. stability casters, (4) 2.91" load wheels
- Electronic power steering
- Overall size: 37.5"W x 72"L x 59"H
- Weight: 1,425 LBS
- Warranty Summary (request full warranty for all details): 24 month or 730 day or 2000 hour parts only limited warranty on frame weldments & powertrain | 12 month or 1000 hour parts only full truck limited warranty excluding wearables | 6 month or 180 day or 1000 hour parts and labor full truck limited warranty excluding wearables | Battery warranty available on request
