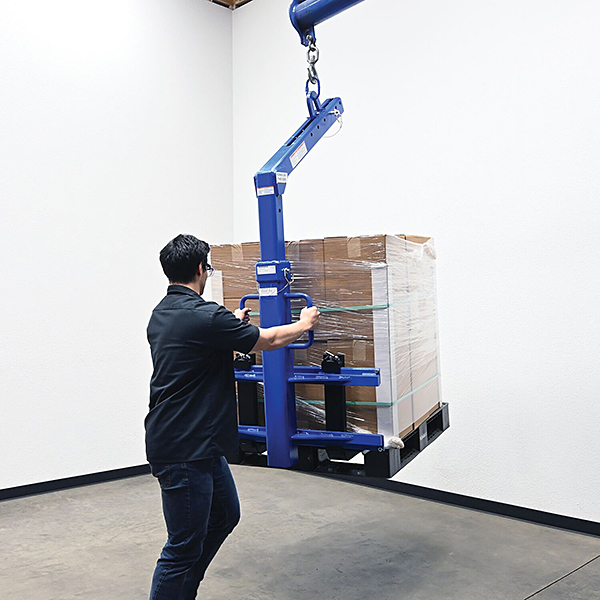

The Vestil OLA-4-42-DLX Crane Pallet Lifter is ideal for lifting and moving pallets, skids, and crates weighing up to 4,000 LBS using a crane or other overhead lifting device. This Vestil pallet lifter features adjustable width forks that adjust from 13” O.D. to 38” O.D., an adjustable bail for keeping the load level while in motion, an opening height that is three position adjustable to allow for different sized loads, and large easy to grab handles that allow the operator to easily position the load. The Vestil OLA-4-42-DLX overhead pallet lifter is made of all welded steel and has a blue powder coat finish making it ideal for use in the toughest industrial environments.
The Vestil OLA-4-42-DLX Overhead Pallet Lifter is built to order with an estimated lead time to leave the warehouse of 30 business days.
Specifications:
- Capacity 4,000 LBS
- Fork spread width adjusts from 13" O.D. to 38" O.D.
- Usable Individual Fork Size: 42"L x 4"W x 1-1/2"H
- 3 position adjustable opening height for accommodating various load sizes. Usable load heights are 42-1/2", 54", & 65-3/4"
- Overall Unit Heights (adjusts as opening height is changed): 65-11/16", 77-7/16", & 89-3/16"
- Adjustable bail for keeping load balanced
- Large grab handles allow the operator to position load
- Overall Size: 39-3/4"W x 50"L x 65-11/16"H (fully retracted)
- Weight: 498 LBS
- Made of welded steel with blue powder coat finish
