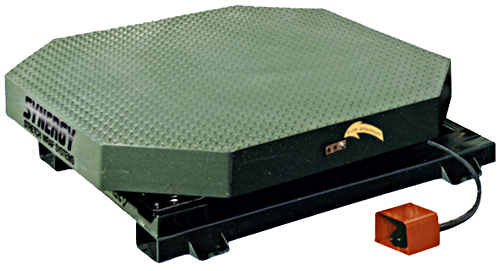

The Highlight Synergy Stretch Wrap Turntable is a low cost solution for increasing efficiency and reducing worker fatigue in stretch wrapping operations. This powered turntable features a high profile design, 48”x48” octagonal turntable, 4,000 LB capacity, soft start, chain drive, and self-aligning casters with 8” drive wheel. The turntable is designed to be loaded and unloaded with a forklift. Rotation speed is controlled via foot pedal and is variable from 0 RPM to 12 RPM. Loads per hour is estimated at 5 to 25 depending on the speed of operator. The ¾ HP AC drive motor is activated by a foot control (an optional hand push button control stand is available). Combine this stretch wrap turntable with a handwrapper for an economical and simple way to stretch wrap pallet loads. Steel diamond plate construction and industrial grade components for years of reliable service. Powered turntable accepts any Highlight Predator or Synergy tower.
Please request a quote for the current estimated lead time for Highlight Synergy high profile packaging turntable
Specifications:
- High profile design
- Perfect for use with a handwrapper, see options below
- Maximum load capacity: 4,000 LBS
- Productivity is estimated at 5 to 25 load per hour

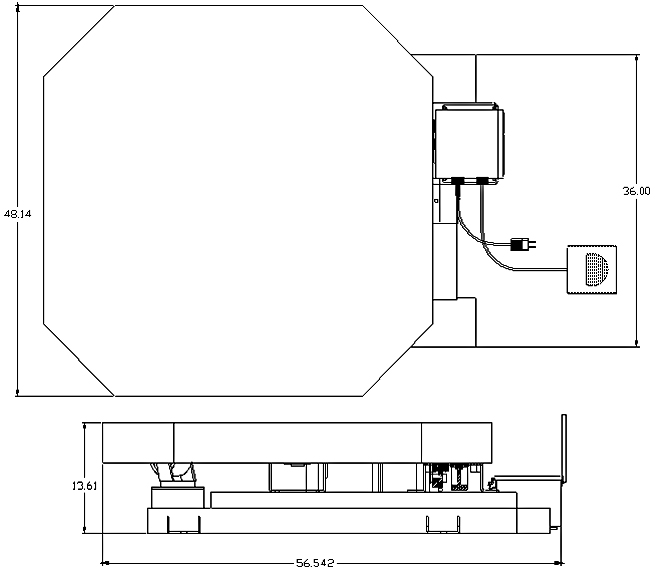

- Turntable Size: 48"x48" Octagonal
- Turntable Speed: Up to 12 RPM, operated via foot pedal
- Soft start
- Chain driven with self-aligning casters with 8” drive wheel
- Turntable Drive Motor: 3/4 HP AC
- Load and unload with a forklift
- Built in fork pockets for easy portability
- 3 Year Limited Warranty
Options:
- Push Button Stand - replaces foot pedal operation - Model TT-PB

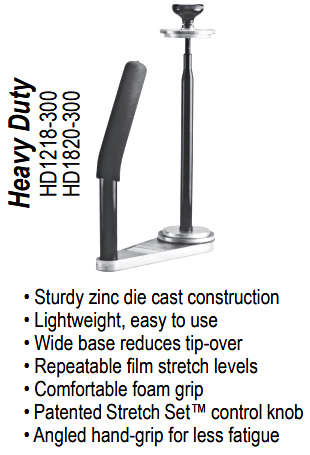

- Handwrapper - to wrap the load as it spins, model for 12 to 18" stretch wrap rolls and model for 18" to 20" rolls - Models HD1218-300 & HD1820-300 SY-EWH
- 5,000 LB Scale - Scale is built into the turntable for lowest profile possible (total height of turntable with scale is 4" from floor to top of turntable). Includes LED display with RS232 bi-directional serial port to connect to label printer. Scale is designed to weigh the load for shipping or internal record keeping, it is NOT NTEP certified - Model PREDPLAT-TT-SCALE
- Scale Display Pedestal - Pedestal that holds and displays the scale - Model PP-SDP
- Low Profile Ramp - allows operator to load turntable with a pallet jack - not compatible with scale package (please request a ramp quote if you are purchasing the scale package) - Model PREDPLAT-TT-RAMP
