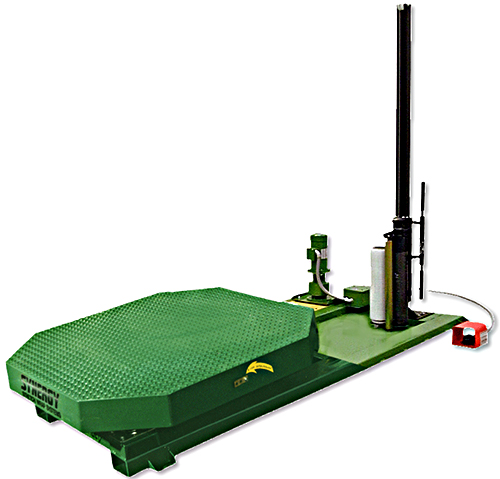

The Highlight SYNERGY .5 High Profile Stretch Wrap Machine is a manual mast / powered carousel stretch wrapper designed to make the packaging process more efficient. The manual mast provides a wrap height of up to 70", with the counterbalanced lift carriage making height adjustment of the film easy and low effort. Rotation of the 48"x48" octagonal platform is operated by a foot pedal. A dial adjusts the turntable rotation rate from 0 to 12 RPM. The Stretch-Set tension system allows the film stretch to be set from 20% to 100% enabling the stretch wrapper to wrap loads tightly and securely. The turntable is designed to be loaded and unload with a forklift. The maximum load capacity is 4,000 LBS and this stretch wrapper is estimated to complete the wrapping of 10 to 12 loads per hour. The Highlight SYNERGY .5 Stretch Wrap Machine uses 12" to 18" long hand wrap rolls with a diameter of up to 6.5".
Please request a quote for the current estimated lead time of the Highlight Synergy .5 stretch wrap machine.
Above attached questionnaire is required to quote this product. Please completed and return per the instructions on the questionnaire.
Specifications:
- Manual mast with a max. wrap height of 70" (extended wrap height option extends wrap height to 104")
- Maximum load capacity: 4,000 LBS
- Productivity is estimated at 10 to 12 load per hour
- 20% to 100% adjustable stretch
- Turntable: 48"x48" Octagonal (max. diagonal 72")
- Turntable Speed: Up to 12 RPM, operated via foot pedal
- Counterweighted film carriage; uses 12" to 18" long hand wrap roll with a diameter of up to 6.5"
- Turntable Drive Motor: 1/2 HP, 90V AC
- Built in fork pockets for easy portability
- Weight: 1,000 LBS
- 3 Year Limited Warranty
Options:
- Extended wrap height - loads can be wrapped up to 104” - Model SY-EWH
- 4,000 LB Scale - Scale is built into the turntable for lowest profile possible (total height of turntable with scale is 4" from floor to top of turntable). Includes LED display with RS232 bi-directional serial port to connect to label printer. Scale is designed to weigh the load for shipping or internal record keeping, it is NOT NTEP certified - Model SY.5-LP-SCALE
- Scale Display Pedestal - Pedestal that holds and displays the scale - Model SY-SDP
