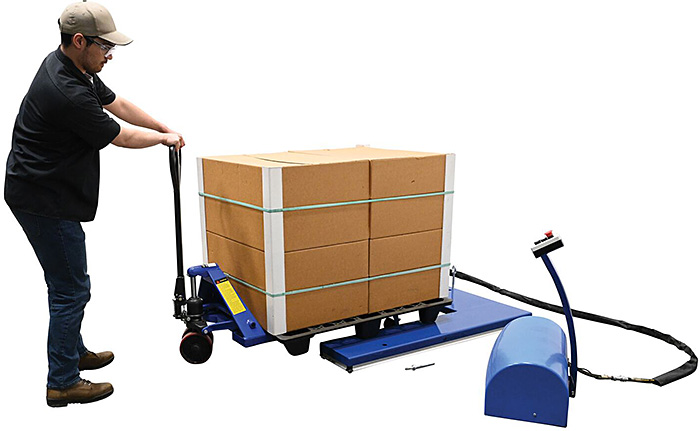

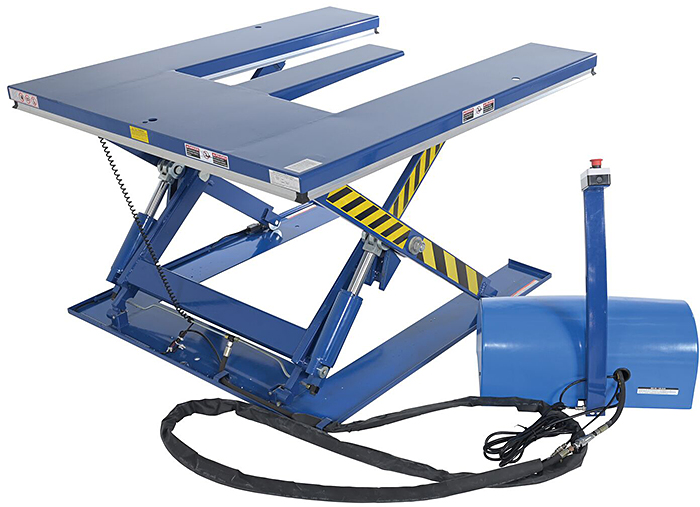

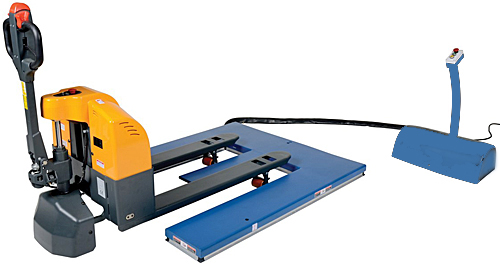

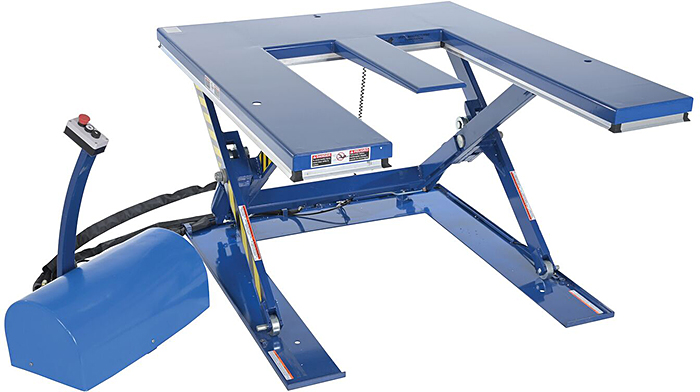

Vestil EHE-3 U Lift Table has an open center that enables a pallet jack to easily place a load weighting up to 3,000 LBS onto the platform and then raise it to a maximum ergonomic work height of 33-7/8". A center support platform helps to prevent the pallet from deflecting downward in the center. The overall platform size is 53-1/2"W x 63"L and the inside center platform dimensions are 6"W x 28"L. This U lift table features an external power unit equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed. A 24V control box with raise/ lower buttons and emergency stop button is pedestal mounted on the power unit. Electric toe guards and a pneumatic upper travel limit switch round out this lift tables features. The Vestil U Lift Table EHE-3 is all steel construction for years of reliable service..
Specifications:
- 3,000 LB capacity
- Lowered | Raised Height: 4-1/8" | 33-7/8"
- Platform Size: 53½"W x 63"L
- Inside table dimensions: 2-3/4"W x 41-1/4"L
- Inside center platform dimensions: 6"W x 28"L
- Steel covered 115V 1 phase external power unit with pedestal mounted control unit
- External power unit features pressure relief valve and flow control valve
- Control unit is 24v and features an emergency stop button
- Electric toe guards
- Pneumatic upper travel limit switch
- Cylinder with internal velocity fuse
- Safety maintenance props
- Weight: 744 LBS
