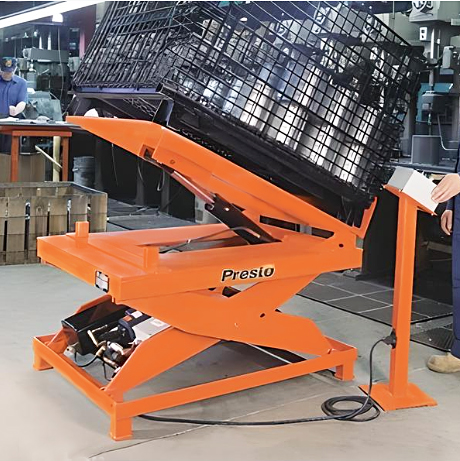

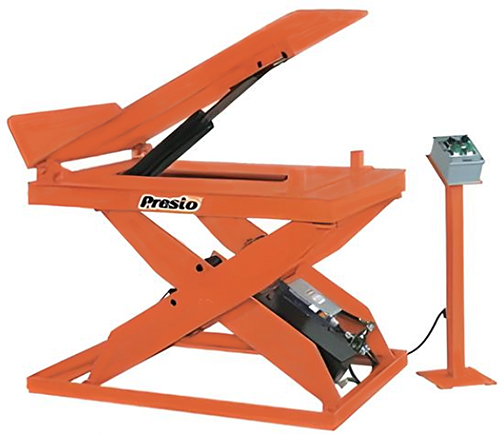

The Presto XWT lift and tilt tables combine precise vertical adjustment with powered tilt control to streamline loading and positioning tasks in industrial environments. Each model features a single 1 HP internal hydraulic power unit (115 V/1 Ph /60 Hz) with standard pedestal controls and optional dual foot or hand controls. Capable of tilting at 30° or 45°, these Hydraulic Lift and Tilt Tables offer a lowered height of 11½" and a raised height of 47 ½", providing a vertical lift of approximately 35". The X3WT lift and tilt tables support 2,000 lb and 4,000 lb capacity units on a 36" x 48" platform (extendable to 60" x 60"), while the wider‑base X4WT lift and tilt tables support the same capacities with a 48" x 48" platform (up to 72" x 60"). Lift speeds range from 42–43 sec and tilt speed is a swift 8 sec. Presto Lift and Tilt Tables are integrated with a tilt cylinder that is built into the platform to reduce stowed height, while also featuring a variety of customization options (see below) allowing these tables to be tailored to specific applications and improve ergonomic handling of materials.
Presto X3WT and X4WT lift & tilt tables are built to order with an estimated lead time of 5 to 7 weeks to leave the warehouse.
Specifications:
- Load Capacities: 2,000 LBS or 4,000 LBS available
- Platform Size: 36" x 48" (X3WT) or 48" x 48" (X4WT); expandable to 60" x 60" (X3WT) or 72" x 60" (X4WT)
- Lowered Height: 11½"
- Raised Height: 47½"
- Vertical Travel: ~35"
- Tilt Angle: tilts at either 30° or 45°
- Lift Speed: 42 sec or 43 sec
- Tilt Speed: 8 sec for all models
- Power Unit: 1 HP hydraulic (115 V/1 Phase/60 Hz)
- Controls: Standard pedestal, optional dual foot or hand controls
- Construction: Integrated tilt cylinder for reduced stowed height

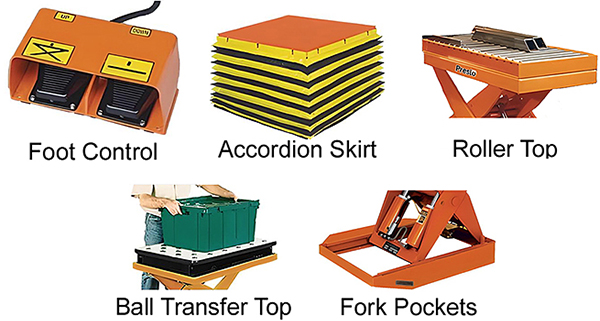

Options:
To see all available options for Presto Lift Tables, Click On Link or photo below to view selections & request a quote.
