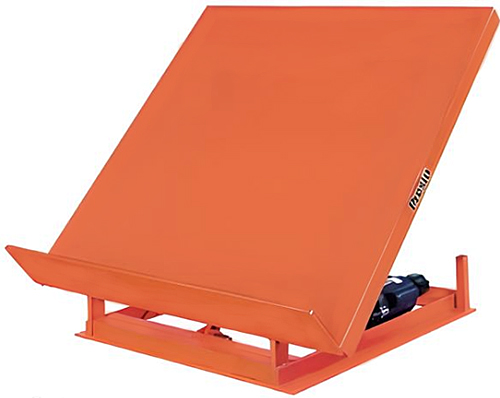

Presto WT60 wide base tilt tables allow the operator to tilt containers, crates, boxes, skids and pallets weighing up to 2,000, 4,000, or 6,000 LBS, depending on the model. These tilters feature double-acting hydraulic cylinders which provide automatic tilt with a maximum tilt angle of 60°. The base and platform leg rollers move within the channel frame for maximum stability, requiring minimal floor space to operate. Can be mounted to the floor, stands or scissor lifts. Platform size is 36" x 42". Lowered height of 8-1/2", while the pivot end features a 12" high lip to keep items secure. Presto WT60 tilt tables are all steel construction with durable enamel finish for a long service life.
Presto WT60 Wide Base Tilt Tables are built to order with an estimated lead time to leave the warehouse of 6 weeks.
Specifications:
- Load capacities: 2,000, 4,000 or 6,000 lbs
- Low Height: 8-1/2"
- Lip: 12" high
- Tilt angles: Up to 60 degrees
- Standard platform: 36" x 42"
- Max Platform: 60" x 60"
- Lifting (Tilting) Speed: 40, 42, or 55 sec available
- Internal 1 HP 115/1/60 power unit
- Easy-to-use control system for precise operation
- Mountable on floors, stands or scissor lifts
- Designed to meet stringent safety and quality standards
