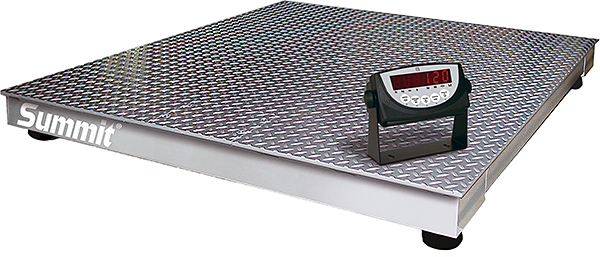

Rice Lake Summit 3000 Floor Scales are high-quality, professional floor scales for use in industrial environments. With a maximum capacity of 10,000 LBS, these industrial floor scales are ideal for weighing pallets, packages and heavy items. Platform size is 48" x 48". Comes standard with a model 120 digital weight indicator operating on 115V or 230V AC power, 20' of load cell cable, and quick disconnect. Summit 3000 scales feature four NTEP certified alloy steel-shear beam load cells and a diamond treadplate steel deck. Four adjustable rigid polyurethane rubber feet provide stability, while a threaded eyebolt hole in the center of the deck provides easy lifting. The 120 digital indicator features 5 button operation, 0.8" LCD display and a 115V or 230V AC wall adapter. Rice Lake Summit 3000 Floor Scales come standard configured and calibrated for 5,000 divisions and have a legal operating temperature of 14°F to 104°F.
.gif)
Rice Lake Summit 3000 Floor Scales have an estimated lead time to leave the warehouse of 3 to 5 business days.
Scale Specifications:
- Comes configured and factory calibrated for 5,000 divisions
- Capacity: 10,000 LBS displayed in 2 lb increments
- Platform size: 48" x 48"
- (4) NTEP certified alloy steel-shear beam load cells
- (1) threaded center eyebolt hole
- Legal operating temperature: 14°F to 104°F
- (4) adjustable rigid polyurethane rubber feet
- Diamond treadplate steel deck
- Load Cell Approvals: NTEP 92-001,Class III 5,000 d | Measurement Canada AM-4827 Class III 5,000 d (model specific)
- Limited Warranty: Weldment & Load Cells 2 years, All other components 1 year
Indicator Specifications:
- Comes standard with 120 Digital Weight Indicator, Powered by 115V or 230V AC wall adapter
- Large .8" six digit backlit LCD display, seven segment digits
- Five button flat membrane panel with tactile feel
- Annunciators: Center of Zero, stand still, gross, net, lb, kg, oz, g
- Full front panel digital calibration and configuration
- EDP port is full duplex RS-232 / Printer Port is output only RS-232 or active 20 mA current loop. Both ports operate at 9600, 4800, 1200, 600, 300 bps
- 20' of load cell cable with quick disconnect
- Enclosure is heavy gauge ABS
- Indicator Approvals: NTEP 03-059, Class III/IIIL 10,000 d | Measurement Canada AM-5517, Class III/IIIHD 10,000 d (model specific) | EU Test Certificate TC7028 (120), Class III, 10,000 d | CE marked
- Limited Warranty: 1 year

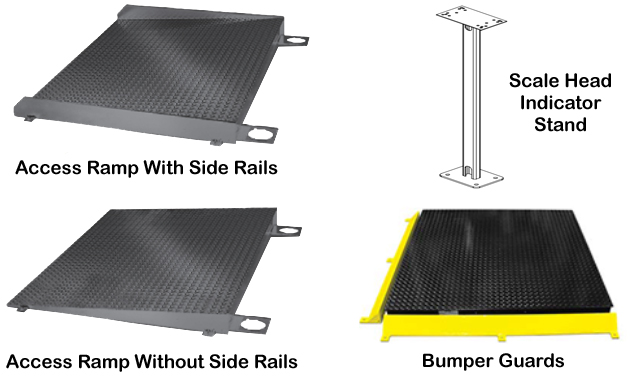

Options: - See Image Above & Chart Below
- Approach Ramp with or without side rails, 48"W x 36"L and 48"W x 48"L - Order 2 ramps to be placed on opposing sides of scale for full roll over capability - See Options Chart Below
- Floor stands for scale head indicator - 36.3" or 48" high - See Options Chart Below
- Bumper Guard - 4'L x 3"W x 3"H steel guard, can purchase up to 3 to cover 3 sides of scale, not for use on corded side of scale, 1/2" anchor bolts not included - See Options Chart Below
- Floor Anchor Plates - Set of 2 - anchors scale feet to the floor - See Options Chart Below
- Pit Frames - Contact HOF for pricing
