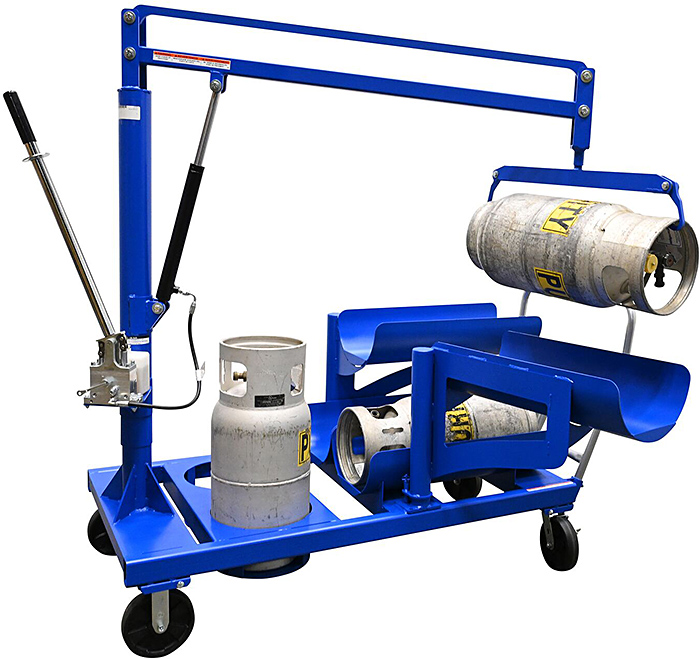

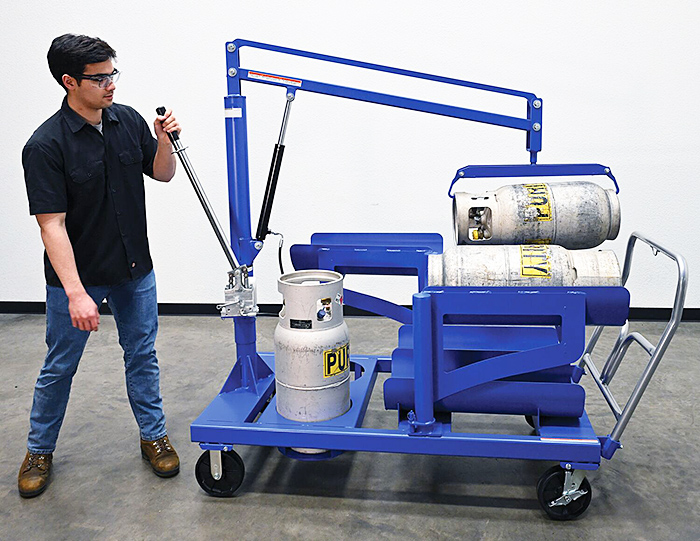

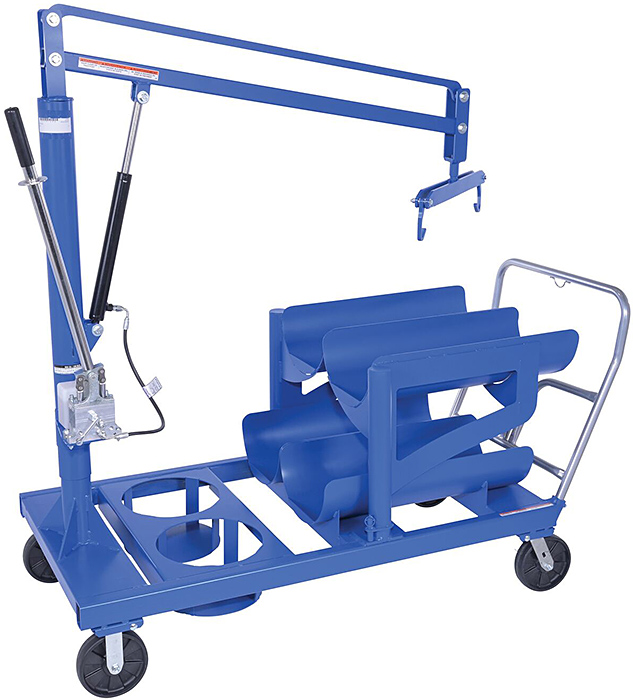

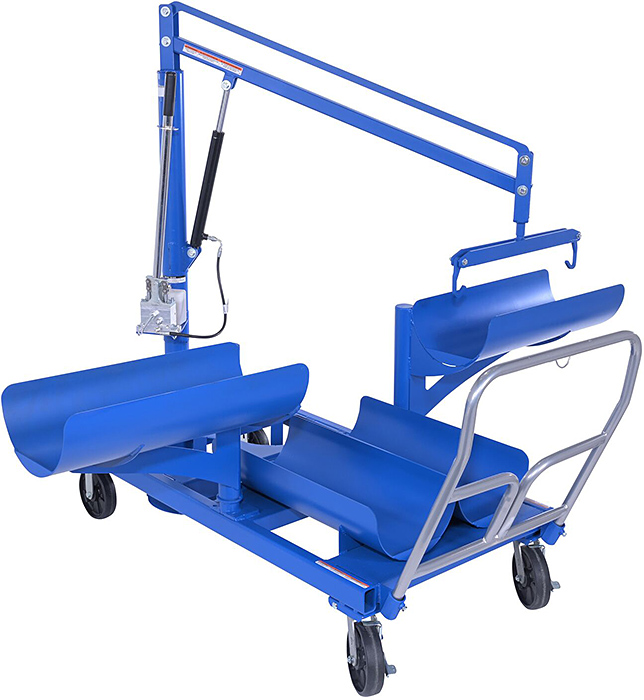

The Vestil LP-6 Tank Truck provides a great solution for lifting, storing, and transporting LP tanks. This all-in-one LP cylinder truck allows the operator to easily move LP tanks where they are needed. A built-in crane pivots 360° and can be used to safely and quickly load full tanks into forklifts. The crane boom is raised and lowered using a manual hand pump hydraulic lift. A tank attachment at the end of the boom clamps to each end of the cylinder. This propane tank truck features built-in racks that store two tanks in the vertical position and four tanks in the horizontal position. The Vestil LP-6 LP tank lifter includes a push handle with two rigid and two swivel casters. Heavy-duty welded steel construction with a painted finish for years of reliable service.
The Vestil LP-6 tank truck is built to order with an estimated lead time to leave the warehouse of 9 weeks.
Specifications:
- See engineering drawing under ADDITIONAL INFO above for all dimensions and lifting ranges
- Uniform Storage Capacity: 6 Tanks (4 tanks horizontally & 2 tanks vertically)
- Maximum Tank Diameter: 12-1/2"
- Recommended Tank Length: Approx. 29"
- Maximum Crane Lift Capacity: 65 LBS if truck is empty / 100 LBS if lower tank bays are filled
- Arm Service Range: 12-3/16" to 77-3/8"
- Manual hand pump operation
- Casters: 8" x 2" glass filled nylon | 2 rear swivel with brake & 2 front rigid
- Overall Size: 33-13/16"W x 136-7/16"L x 94-9/16"H (hook arm extended forward)
- Weight: 566 LBS
