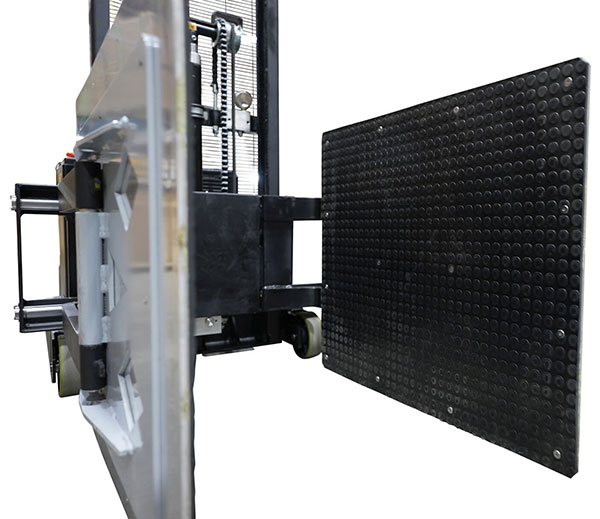

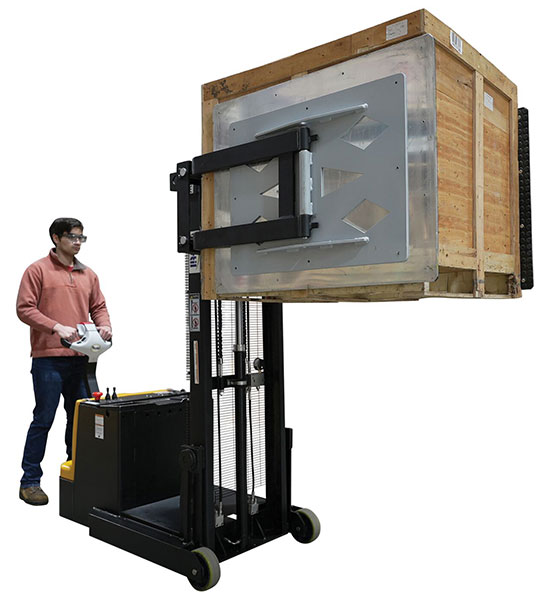

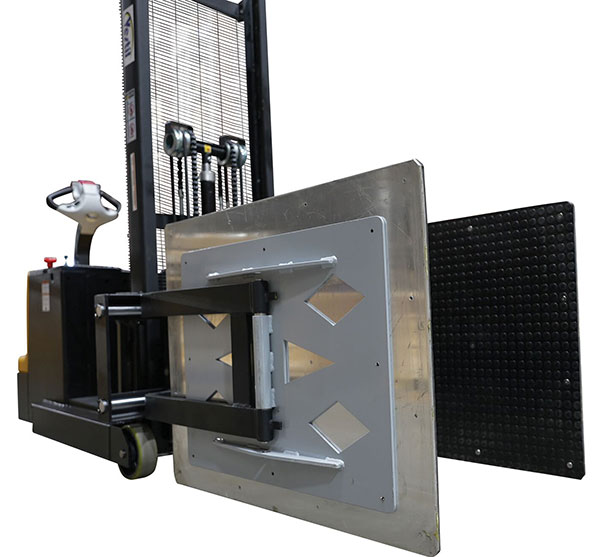

The Vestil S-CB-2341-BCF Electric Clamping Bale Lifter is great for loading and unloading trucks, die loading or machine feeding with its capacity of 800 LBS. Powered by two 12V lead acid batteries. This electric clamping bale lifter has max clamp width of 41.3” and a min clamp width of 23.6”. Features ergonomic handle with easy-to-operate throttle. This Electric Clamping Bale Lifter has a max raised height 52”. Rolls on poly-on-steel steer and load wheels with a 0.7 KW drive and 2.0 KW lift motor. Full charge lasts 3-4 hour when continuously used – 8 hours when used irregularly. Clamping Bale Lifter has an emergency reverse belly switch and built-in safety circuit for protection. Drive wheel diameter of 10” and a front wheel diameter of 7”. Caster material is poly-on steel and caster color is yellow.
The Vestil S-CB-2341-BCF Electric Clamping Bale Lifter has an estimated lead time to leave the warehouse of 6 business days.
Specifications:
- Capacity: 800 LBS
- Max Raised Height: 52”
- Max Clamp Width: 41.3”
- Wheel quantity: (2) Front and (2) Drive wheels
- Front Wheel Diameter: 10”
- Front Wheel Width: 2.3”
- Drive Wheel Diameter: 7”
- Drive Wheel Width: 3.1”
- (2) 12V Lead Acid Batteries
- 0.7 KW drive & 2.0 KW lift motor
- Battery life: 3-4 hours with constant use
- 8 hour length with irregular use
- Ergonomic handle
- Emergency Reverse Belly Switch
- Built-in Safety Circuit
- Caster Material: Poly on steel
- Caster color: yellow
