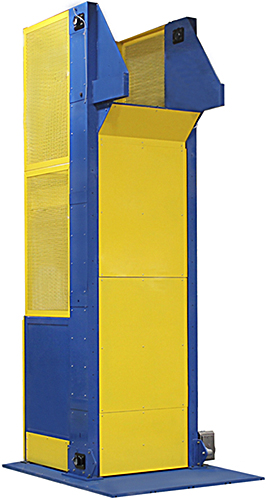

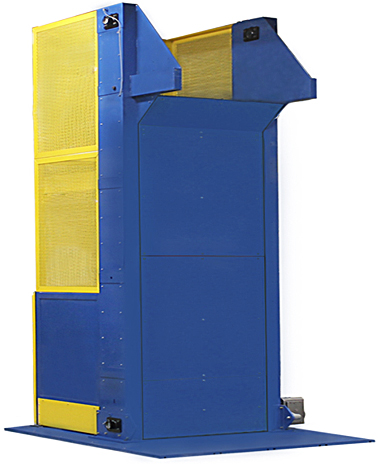

The Endura-Veyor Optimizer Container Dumper features a 39% smaller footprint and requires much less overhead clearance than traditional box dumpers allowing these Optimizer box dumpers to operate confined space areas. These chain driven box dumpers offer the following advantages over hydraulic box dumpers; operate up to 50 times faster, produce less noise when operating, eliminate the possibility of hydraulic oil contamination, and require less maintenance. Other significant advantages of Endura-Veyor Optimizer dumpers is that they offer dump heights of up to 20 feet and an extended horizontal chute reach of 25.5". Standard options include auto run feature and gated enclosure with door interlock to prevent dumper from operating when the gate is open. These Endura-Veyor dumpers are ideal for use in a variety of material handling applications including sorting applications, manufacturing lines, and any dumping application requiring a small footprint, low ceiling height, or high dump height.
Endura-Veyor Optimizer Box Dumpers are built to order with an estimated lead time to leave the factory of 8 to 10 weeks.
To request a quote please complete the Box Dumper Survey located in Additional Info above.
Specifications:
- Max. Capacity is 2,000 LBS
- Dump Heights: Up to 102" for regular Optimizer dumpers | 9' to 20' for larger Hi-Lift Optimizer dumpers
- Usable Chute is 52"W x 48"L (can be customized) and horizontal chute reach is 25.5" when fully rotated
- Included auto run controls allow the dumper to complete a full dump cycle at the push of a button
- Gated enclosure with door interlock included

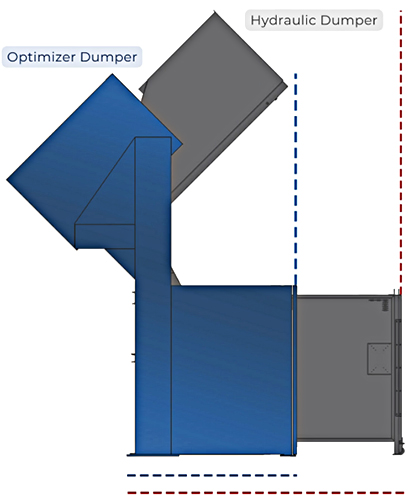

- 39% smaller footprint and requires much less overhead clearance than traditional container dumpers
- Footprint: 95"W x 85"L
- Dump cycle is up to 50% faster and less noisy than hydraulic container dumpers
- The max. chute rotation is 135° providing a 45° dump angle
- Height adjustable container retaining bar to accommodate different container/box sizes

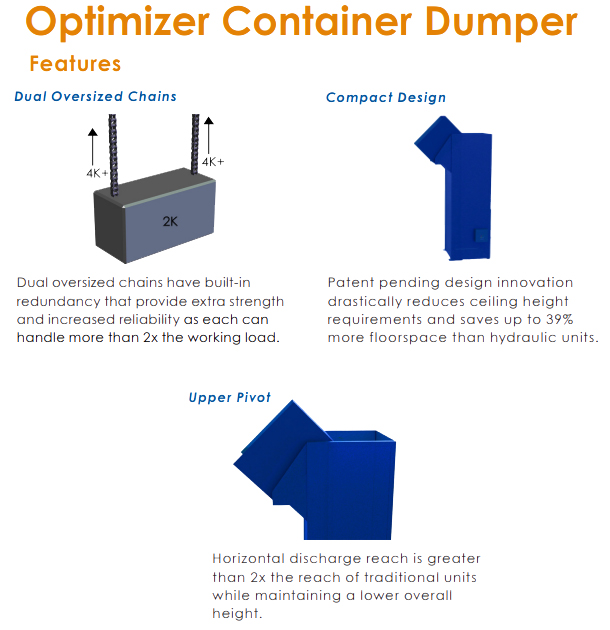

- Safety in enhanced by dual oversized chains, each chain can handle more than 2X the working load
- Maintenance interval monitoring, customizable advanced metering functionality, CAT 3 PLC, IP Rating
- 460v 3 PH, 230v 3PH, 208v 3PH, 575v 3PH, and 230v 1PH motor voltages available
- Main pivot bearings are warranted for 5 years, never need lubricating, & feature a severe duty rating
- Heavy duty welded steel construction with polyester powder coat finish
Options:
- Beveled chute edge. Infeed lip is beveled to a 45 degree angle for easier loading of containers with a hand truck or pallet jack
- Custom chute size, custom bottom of container hold down solutions instead of top of container hold down bar, stainless steel chute, stainless steel clad chute, stainless steel hold down bar, and FDA approved paint for chute exterior and frame available
