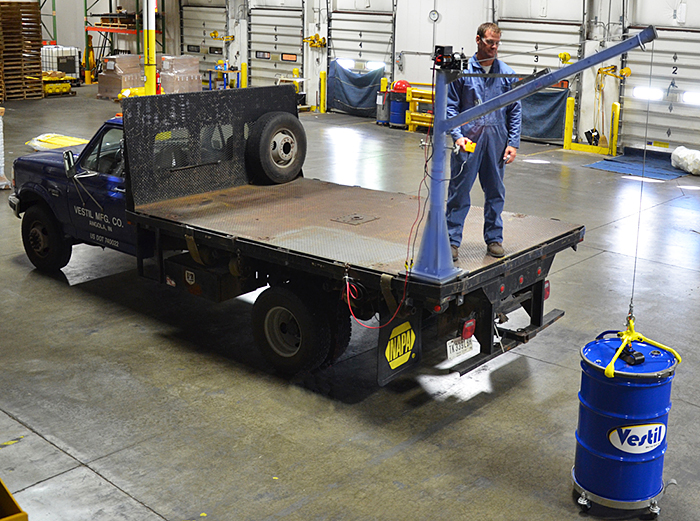

The Vestil WTJ-20-4-DC Power Lift Jib Crane is ideal for lifting applications from a truck bed. Lift capacity ranges from 250 LB to 2,000 LBS depending on boom extension. A 12V DC powered winch with 46' of 3/16” diameter lift cable and a swivel snatch block allows load to be easily lifted from the ground level and raised to an elevated position. Winch can be customized with additional cable if needed. The telescoping boom extends in 12” increments with the reach ranging from 39-1/4" to 63-1/4" and the height ranging from 59-9/16" to 96-1/8". This Vestil power lift jib crane rotates 360 degrees for full accessibility. Steel construction with durable blue enamel finish. The Vestil WTJ-20-4-DC Power Lift Jib Crane is designed for intermittent use.
Crane is designed for vertical lifting only. Do not use for lifting personnel or overhead lifting.
The Vestil WTJ-20-4-DC Power Lift Jib Crane has an estimated lead time to leave the warehouse of 3 business days
Specifications:
- Capacity ranges from 250 LBS to 2,000 LBS – see diagram below
- 12V DC powered winch with 46' of 3/16” diameter cable (battery not included, connect to a vehicle battery)
- Hand held winch control pendant
- Winch cable end is a swivel snatch block with safety latch
- 360 degree rotation
- Boom telescopes in 12” increments and can be raised
- 12” x 12” mounting plate with predrilled mounting holes
- Steel construction with blue enamel finish
- Overall size: 13.5”W x 63.81”D x 68.81”H
- Weight: 256 LBS

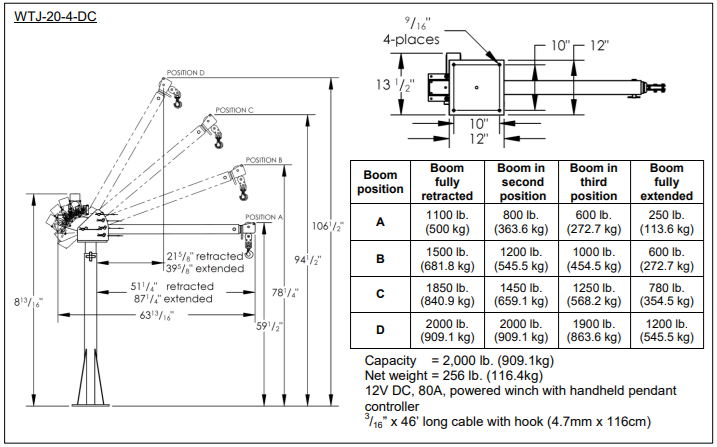

NOTICE: Uniform capacity decreases as boom is extended and increase as boom angle is raised. See chart below for capacities at various boom positions.
