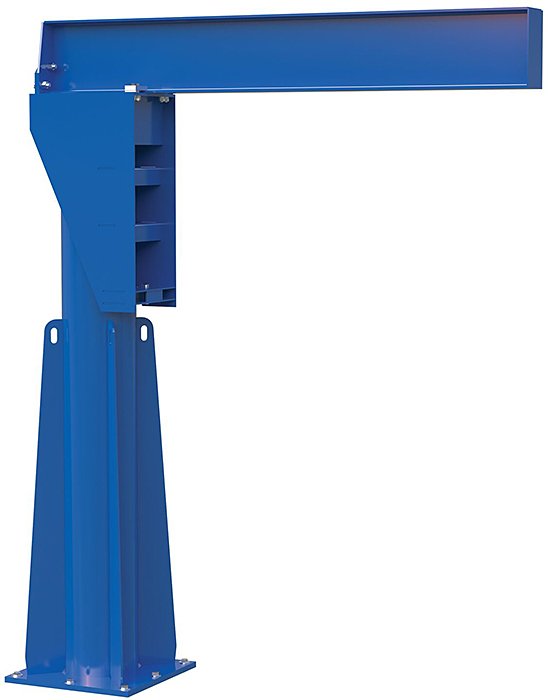

The Vestil JIB-FM-40 Floor Mounted Jib Crane is a fixed height jib crane with a maximum capacity of 4,000 LBS, that is suited for a diverse range of applications. This Vestil jib crane features full 360° rotation allowing the operator to fully utilize their workstation. The overall I-beam length is 80-3/8" with a usable length of 66-1/8". Distance from under the I-beam to the floor is 99-1/4". Jib crane must be installed on a reinforced concrete pad. Each Vestil JIB-FM-40 jib crane features all steel construction with a durable blue enamel finish for a long service life.
The Vestil JIB-FM-40 Floor Mounted Jib Crane is built to order with an estimated lead time to leave the warehouse of 35 business days.
Specifications:
- Capacity: 4,000 LBS
- I-Beam Length: Overall 80-3/8" | Usable 66-1/8"
- Under I-Beam to floor: 99-1/4"
- S Type I-Beam is 12-1/4" high with a 6-1/2" flange width
- 360 degree rotation
- 24" x 24" baseplate with pre-drilled mounting holes
- Overall Size: 24"W x 89.375"L x 111.5"H
- Weight: 765 LBS
- Requires reinforced concrete pad for installation
Hoist and Trolley sold separately. Click link to see our selection of Hoists and Trolleys
Product should be inspected frequently to insure safe operation. Testing and inspection of the unit is the responsibility of the end user after final assembly has been completed. For further details see ASME B30.17.
