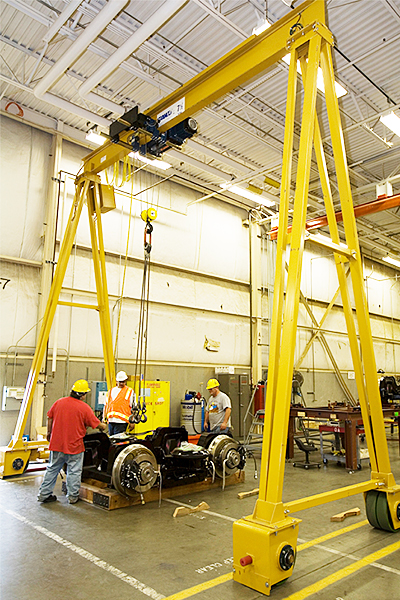

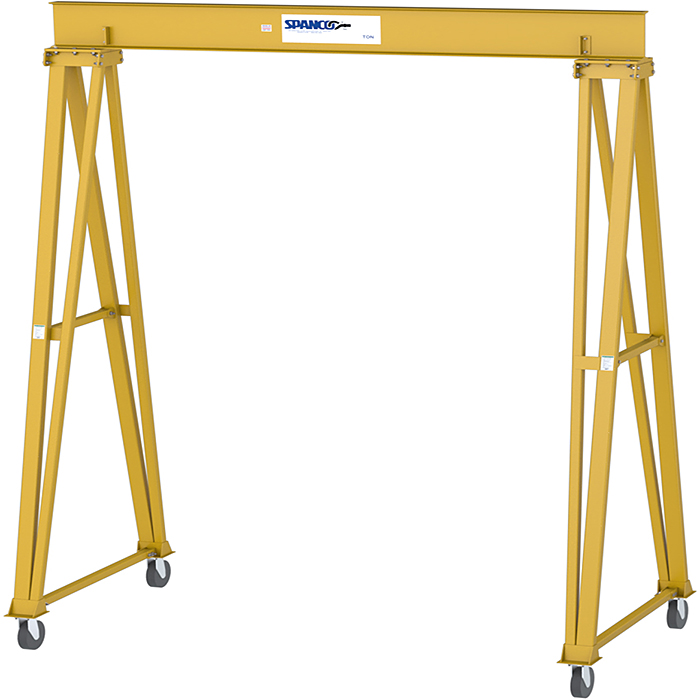

Spanco PF 3 Ton Fixed Height Steel Gantry Cranes are heavy-duty, industrial-grade cranes designed to be moved while under load. These portable gantry cranes have a maximum capacity of 3 tons(6,000 LBS) and usable I-Beam spans from 11'0" to 35'0", depending on model. Usable height under beam is 20', 25', 30' or 35'. Spanco 3 ton gantry cranes come standard with non-marking polyurethane wheels on swivel casters with four-position swivel locks for enhanced floor protection. All steel construction provides a long service life. Meets OSHA 1910.179, ANSI B30.11, AWS D1.1, CMAA 70 and ASME B30.2 standards. Motorized drive available on V-Groove track or by motor controlled trackless path (operates on facility floor without a track). Ideal for use in factories, warehouses and data centers.
Spanco PF-series Portable Gantry Cranes are built to order with an estimated lead time to leave the warehouse of 10 weeks.
Specifications:
- See all crane measurements on drawing in ADDITIONAL INFO above ↑
- Capacity: 6,000 LBS - Crane may be moved while loaded
- I-Beam Length: 15' - 40' depending on model / Usable clear span from 11' to 35' depending on model
- Under I-Beam Usable Height: 20', 25', 30' or 35'
- S-Type I-Beam
- 8" four-position swivel locking polyurethane casters (lock at 0°, 90°, 180°, 270°)
- All steel construction
- Crane should be inspected frequently to ensure safe operation. Testing and inspection of the crane is the responsibility of the end user.
Options: - See Chart Below
- Wheel Brakes - locks casters from rolling - Set of 4 - Model 32-003T-4B

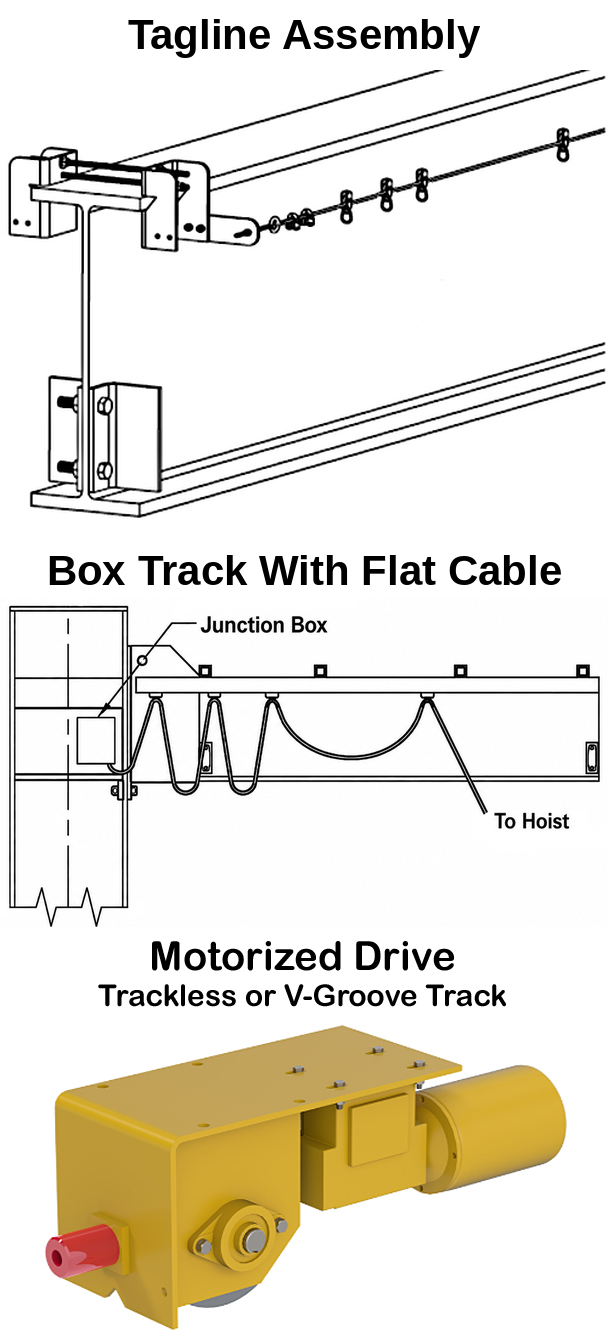

- Tag Line Assembly - festoon system for power cord management when using electric hoist - choose the model that corresponds with the usable clear span of the desired crane - Models with prefix 04053G
- Box Track For Power Only OR For Power And Control - for power one track, for power & control two tracks. Flat 4-conductor #12 AWG cable for trolley and/or hoist power cord management AND pendant control cord management - Contact HOF for pricing
- Power Motorized Drive - crane is motor driven on V-Grove track or by motor controlled trackless path that operates on a regular floor without a track - Contact HOF for pricing
- V-Groove Track & Casters - Contact HOF for pricing
- Equip For Outdoor Use - Armorpoxy coating is best for cranes that will be used outdoors in a non-corrosive environment (rain or freshwater). A Hot dipped galvanized finish is best if crane will be used near salt water or in a corrosive environment. A stainless steel motor housings with NEMA 4 rating is recommended for motorized cranes used outdoors in any environment - Contact HOF for pricing for these options
Hoist and Trolley sold separately. Click link to see our selection: Hoists and Trolleys
