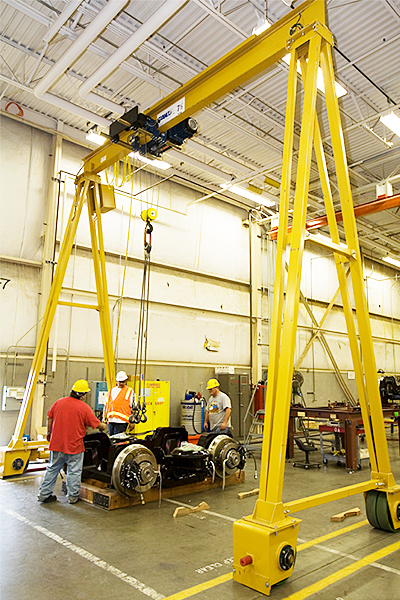

Spanco PF 15 Ton Fixed Height Steel Gantry Cranes are heavy-duty, industrial-grade cranes designed to be moved while under load. These portable gantry cranes have a maximum capacity of 15 tons (30,000 LBS) and usable I-Beam spans from 10'0" to 30'0", depending on model. Usable height under beam is 20', 25', 30' or 35'. Spanco 15 ton gantry cranes come standard with non-marking polyurethane wheels on swivel casters with four-position swivel locks for enhanced floor protection. All steel construction provides a long service life. Meets OSHA 1910.179, ANSI B30.11, AWS D1.1, CMAA 70 and ASME B30.2 standards. Motorized drive available on V-Groove track or by motor controlled trackless path (operates on facility floor without a track). Ideal for use in factories, warehouses and data centers.
Spanco 15 Ton Gantry Cranes are built to order with an estimated lead time to leave the warehouse of 10 weeks.
Specifications:
- See all crane measurements on drawing in ADDITIONAL INFO above ↑
- Capacity: 30,000 LBS - Crane may be moved while loaded
- I-Beam Length: 15' - 35' depending on model / Usable clear span from 10' to 30' depending on model
- Under I-Beam Usable Height: 20', 25', 30' or 35'
- S-Type I-Beam
- 12" four-position swivel locking polyurethane casters (lock at 0°, 90°, 180°, 270°)
- All steel construction
- Crane should be inspected frequently to ensure safe operation. Testing and inspection of the crane is the responsibility of the end user.

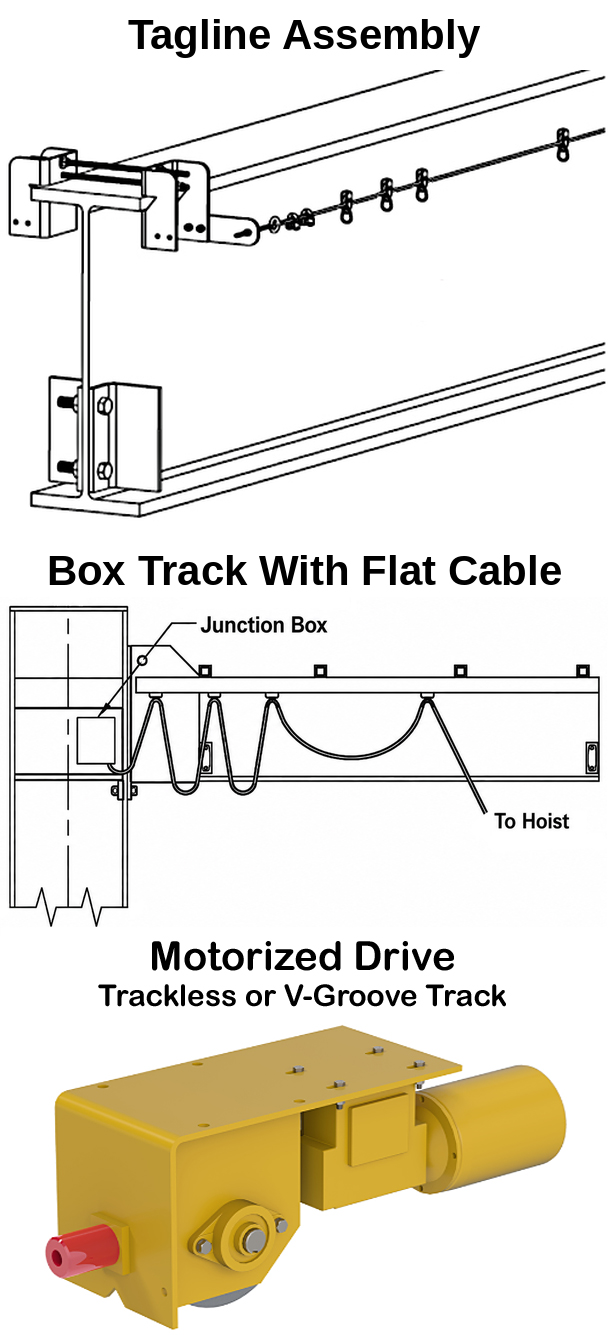

Options: - See Chart Below
- Wheel Brakes - locks casters from rolling - Set of 4 - Model 32-0015T-4B
- Tag Line Assembly - festoon system for power cord management when using electric hoist - choose the model that corresponds with the usable clear span of the desired crane - Models with prefix 04053G
- Box Track For Power Only OR For Power And Control - for power one track, for power & control two tracks. Flat 4-conductor #12 AWG cable for trolley and/or hoist power cord management AND pendant control cord management - Contact HOF for pricing
- Power Motorized Drive - crane is motor driven on V-Grove track or by motor controlled trackless path that operates on a regular floor without a track - Contact HOF for pricing
- V-Groove Track & Casters - Contact HOF for pricing
- Equip For Outdoor Use - Armorpoxy coating is best for cranes that will be used outdoors in a non-corrosive environment (rain or freshwater). A Hot dipped galvanized finish is best if crane will be used near salt water or in a corrosive environment. A stainless steel motor housings with NEMA 4 rating is recommended for motorized cranes used outdoors in any environment - Contact HOF for pricing for these options
Hoist and Trolley sold separately. Click link to see our selection: Hoists and Trolleys
