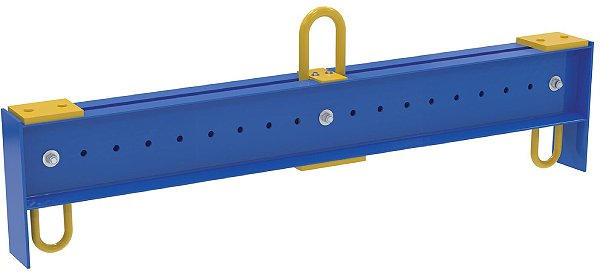

The Vestil SBM‑BFB‑100‑6 Adjustable Spreader Beam is a high-capacity lifting beam engineered to safely handle large, awkward, or uneven loads with precision and minimal overhead clearance. This heavy-duty steel beam offers a full 10,000 lb uniform capacity and features a maximum spread of 72″, with a minimum spread of 24″, achieved via adjustable lower and upper bails that move in 4″ increments within dual 5″-high C-channel tracks. Compact in design, it measures approximately 80½″ long, 6½″ wid*, and provides 25½″ of headroom, making it ideal for tight overhead spaces. The unit includes one upper bail (usable opening 4″ W × 7½″ H) and two lower bail/sling holders (3″ W × 5¾″ H), finished in a durable blue powder coat. Weighing around 388 lb, the Vestil SBM‑BFB‑100‑6 Adjustable Spreader Beam ensures stable load control and optimal lifting geometry in industrial, construction, and material handling applications.
The Vestil SBM‑BFB‑100‑6 Adjustable Spreader Beam has an estimated lead time to leave the warehouse of 30 business days.
Specifications
- Uniform Capacity: 10,000 lb
- Minimum Spread: 24″
- Maximum Spread: 72″
- Bail Adjustment Increments: 4″

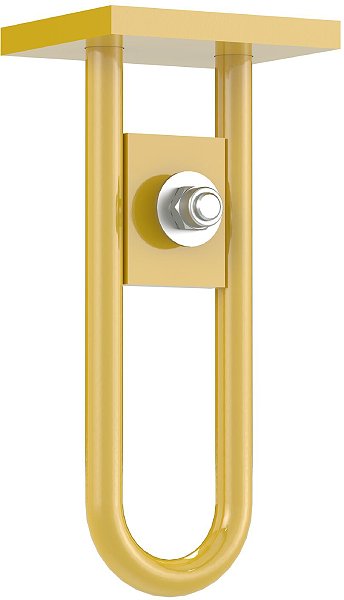

- Lower Bail Opening: approx. 3″ W × 5¾″ H

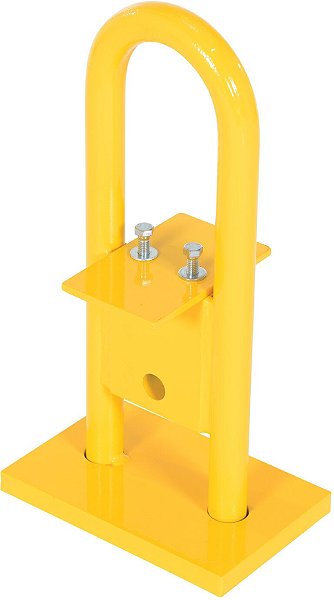

- Upper Bail Opening: approx. 4″ W × 7½″ H
- Headroom (Overall Height): 25½″
- Overall Length: approx. 80½″
- Overall Width: approx. 6½″
- Construction: All-welded steel frame with blue powder coat finish
- Net Weight: approx. 388 lb
