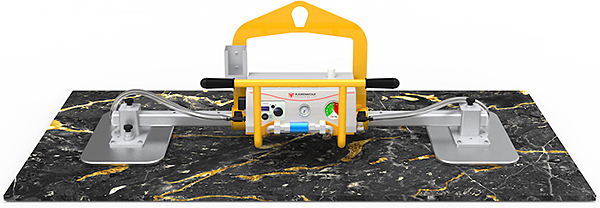

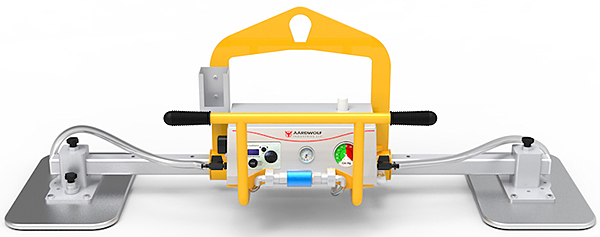

The Aardwolf AVLM2/500 Vacuum Lifter is a powerful and versatile lifting solution designed for handling large, flat, non-porous materials in both horizontal and vertical orientations. With a horizontal working load limit of 1102 lbs and a vertical limit of 551 lbs, this vacuum lifter is equipped with two large 19-3/4" x 11-3/4" suction pads that deliver a secure grip and reliable stability. Powered by a high-performance 12V Bosch lithium-ion battery (2.0Ah), the AVLM2/500 provides up to 6 hours of operation in energy-saving mode, or an extended 360 hours in audio alarm-only mode. Recharging is quick and convenient, with a 0.5-hour full charge time using the included Bosch GAL 12V-40 charger. The system also integrates a pressure-saving mode and operates efficiently with an air supply pressure of 72 psi and an air consumption rate of 180 liters per minute. Weighing 106 lbs with compact packaging dimensions of 58-1/4" x 18-1/8" x 32-1/4", this lifter is engineered for portability, performance, and all-day productivity on demanding worksites.
The Aardwolf AVLM2/500 Vacuum Lifter is built to order with an estimated lead time to leave the warehouse of 2-3 business days.
Specifications
- Number of Pads: 2
- Pad Size: 19-3/4" x 11-3/4"
- Capacity (Horizontal): 1102 LBS
- Capacity (Vertical): 551 LBS
- Packaging Dimensions: 58-1/4" x 18-1/8" x 32-1/4"
- Battery Type: Bosch GBA 12V / 2.0Ah Lithium-Ion
- Battery Voltage / Current: 12V / 2.0Ah
- Working Time (Energy-Saving Mode): 6 hours
- Working Time (Audio Alarm Mode): 360 hours
- Charger: Bosch GAL 12V-40 (12V, 4.0Ah)
- Charger Full Time: 0.5 hour
- Air Consumption: 180 liters/minute
- Supply Air Pressure: 72 psi (5 bars)
- Net Weight: 106 LBS
- Gross Weight: 190 LBS
