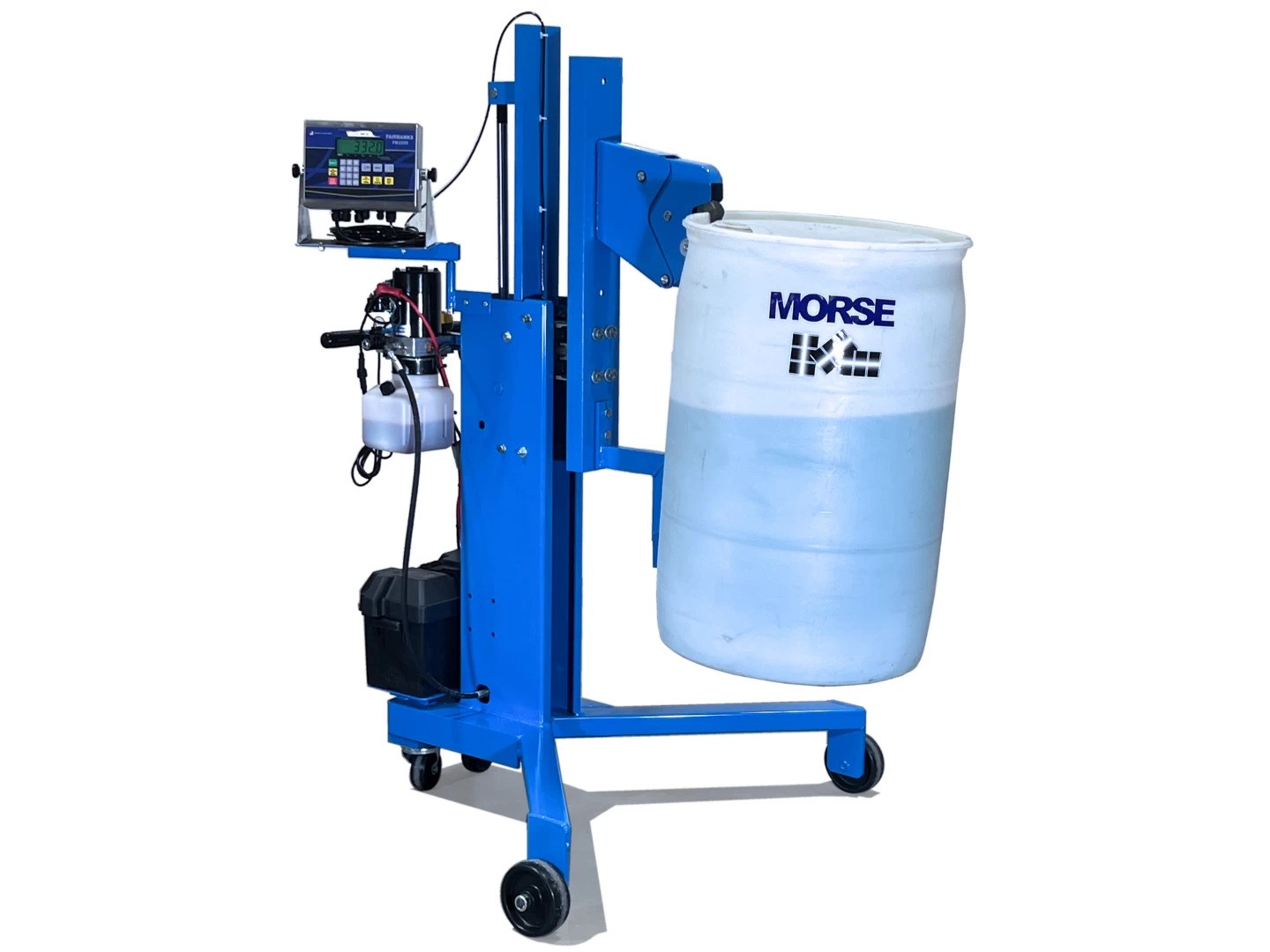

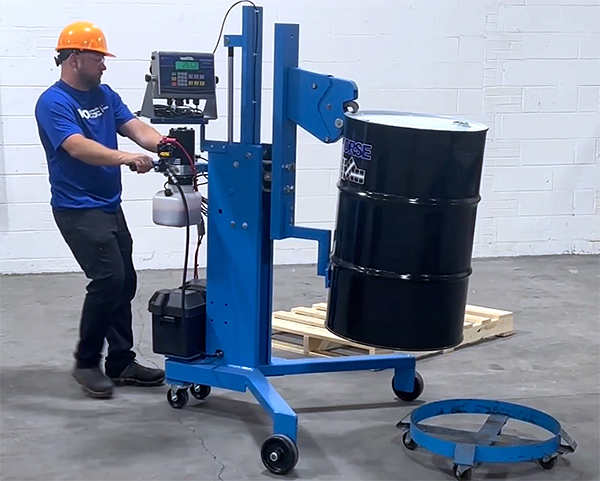

Morse 825H-N-125 Drum Palletizer with Scale are made to handle the transportation, palletization, and depalletization of drums with different diameters. For use with rimmed steel, fiber or plastic drums. 800 LB capacity. This drum palletizer can raise drums up to 19” from the floor and requires drums to be at least 22.5” tall. Jaws activate when weighing at least 75 LBS. Features equipped scale to weigh drums while lifting and transporting. Accuracy of scale is +/- 0.2% of displayed weight. Straddles pallet up to 41” wide and 7” tall. To operate, simply push the Morse 825H-N-125 against the side of the drum, raise the "head" containing the jaws to engage the grip, hold and lift drum. The jaws will release automatically when the drum is lowered onto a pallet or the floor. AC and Air powered drum lifters available - see chart below.
The Morse 825H-N-125 drum palletizer with Scale has an estimated lead time to leave the warehouse of 3-5 business days.
Specifications:

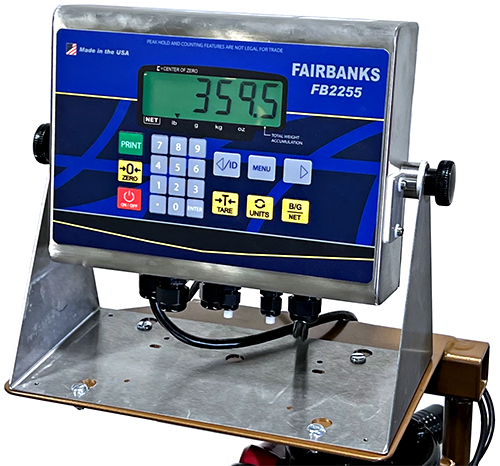

- Equipped with scale with an accuracy: +/- 0.2% of displayed weigh
- Capacity: 800 LBS
- Handles rimmed steel, fiber or plastic drums
- Max Drum Height: 19”
- Drum Height Requirement: 22.5”
- Drum Weight Requirement: 75 LBS
- Straddle: up to 41” wide and 7” tall
- Mechanical and automatic drum grip
