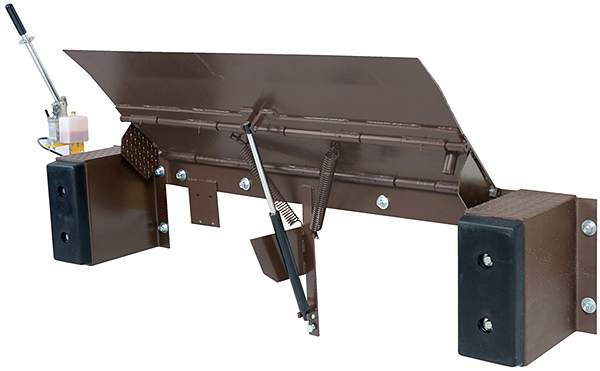

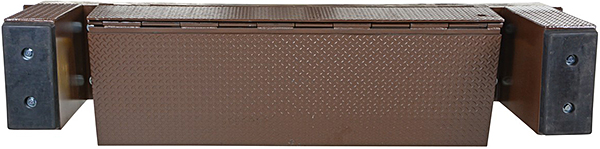

The Vestil PP-2078 Hydraulic Edge Of Dock leveler permanently attaches to face of dock. Leveler is easy to install mounting to any loading dock with a steel dock edge or approach plate. A continuous weld completely across the top, and down both sides of the mounting plate is required for correct installation. This Vestil dock leveler features a capacity of 20,000 LBS, a ramping length of 29", and a usable width of 78". The service range is 5” above and below the dock. To operate, the Hydraulic hand pump system lifts the leveler and extends the lip. The operator then rotates the relief valve allowing the deck to descend and rest on the trailer. Truck must pull out for leveler to return to stored position. A concrete recess is not required. Recommended for use on docks that are at least 48” high. The Vestil PP-2078 Hydraulic Edge Of Dock leveler comes complete with (2) 2" x 8" x 18" bumpers and installation instructions.
The Vestil PP-2078 Hydraulic Edge of Dock Leveler is built to order with an estimated lead time to leave the warehouse of 30 business days.
A steel curb edge, approach plate, or approach ramp is required for proper weld on installation. See options below.
Specifications:
- Capacity: 20,000 LBS
- 105" Overall Width | 78" Usable Width
- Overall Depth With Ramp Out: 29"
- Recommended for docks that are at least 48" high
- Service range is 5" above and below dock
- Comes complete with manual hand pump, wall mount brackets, cylinder, one-hundred eighty (180) inch hydraulic line and oil
- (2) 2" x 8" x 18" bumpers with 17-1/2" projection come standard (can service low trucks)
- Tread plate design offers a positive non-slip gripping action
- Mounts to any loading dock with a steel dock edge or approach plate
- Does not require a concrete recess
- Steel construction with durable enamel finish
- Overall Dimensions: 105”W x 17.5”D x 27.75” H
- Weight: 578 LBS
Options:

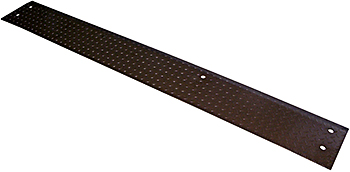

- Approach Plate 96"W x 12"L x 1/4" Thick with pre-drilled mounting holes (bolted to concrete) - Model AP
- Curb Edge - 6" Channel x 96" Long (must be set in wet concrete) - Model CE
- Approach Ramps 96"W x 12"L x 2"H and 96"W x 24"L x 4"H (bolted to concrete) allows dock leveler to be mounted 2" or 4" higher increasing dock height. Note: ramp may not allow dock door to fully close leaving a gap between dock floor and door. For a custom, no gap hinged solution, contact us. - Model RAMP-2 / RAMP-4
