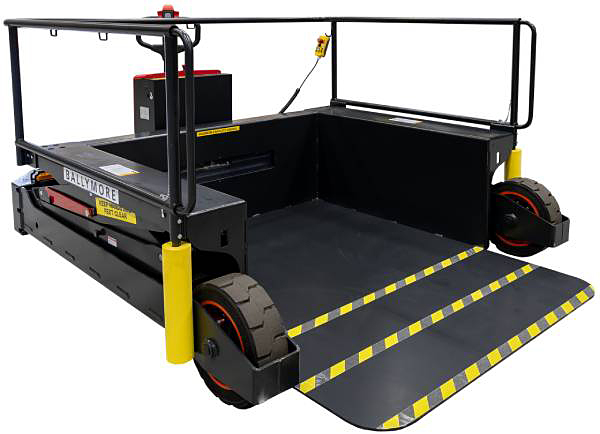

The Ballymore RT-PLD-5K Rough Terrain Portable Loading Dock is a versatile solution for loading and unloading anywhere you need it. This mobile loading dock features treaded RT solid tires provide stability and maneuverability on uneven surface, an all-in-one control handle which controls drive, steering and raising / lowering the platform. The 59"W x 75"L platform is at ground level when lowered and can be raised up to 56" high. With a maximum capacity of 5,000 LBS, the Ballymore RT-PLD-5K is ideal for use with docks or pick-up trucks. The Ballymore portable loading dock comes with a 24V, 2.2kw, 150 amps motor powered by a 48v 85Ah battery and includes a 110v built-in charger. Extendable side rails and an emergency stop button provide extra safety to workers during use. Ships via flatbed trailer.
The Ballymore RT-PLD-5K rough terrain portable loading dock has an estimated lead time to leave the warehouse of 5 business days.
Specifications:
- 16.25 dia. front & 11.75" dia. rear rough terrain treaded RT solid tires
- Maximum Capacity: 5,000 LBS
- Platform Size: 59"W x 75"L
- Powered forward/reverse & lift/lower
- Platform service range: 0" to 56"
- 48v 85Ah battery with integral 110v charger, battery power indicator
- Built-in cycle counter
- Extendable side rails
- Single handle controls drive, steering and lift/lower functions
- Emergency stop button
- Overall Size: 84"W x 104"L x 52"H (lowered)
- Weight: 3,462 LBS
