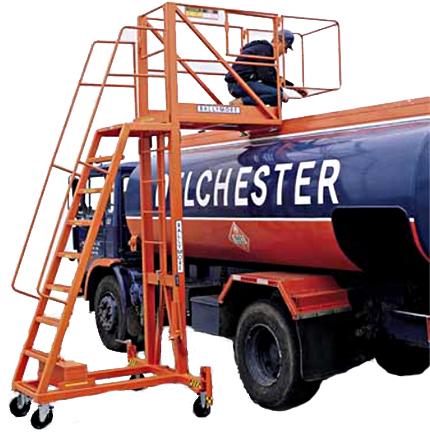

The Ballymore TT-11-15 Rolling Work Platform has a cantilevered design making it easy to work on railroad cars, truck trailers, tank trucks, and other applications that require an elevated cantilever platform. Ice and snow can be easily cleared off of high items with this adjustable height work platform. This cantilever work platform uses a hydraulic hand pump used to raise/ lower platform. Open serrated plating on the platform provides slip resistance for the operator. Ballymore TT-11-15 under height platform height is adjustable from 11' to 15'. Base dimensions of this work platform are 38” wide by 60” long with fixed outriggers spread 69”. Key specifications include a capacity of 300 LBS, a platform Width x Length of 48” x 24”, Platform min. height of 11’ 4” and a platform max. raised height of 15’ 8”. The Ballymore TT-11-15 rolling work platform rolls on two swivel and two rigid 8” casters. Deep gray enamel finish with the option of a powder coat safety orange available.
The Ballymore TT-11-15 cantilever work platform is built to order with an estimated lead time to leave the factory of 5 weeks.
Specifications:
- Capacity: 300 LBS
- Manual hydraulic hand pump raises and lowers platform
- Platform dimensions 48”W x 24”L
- Platform lowered height: 11’ 4”
- Platform max. raised: 15’ 8”
- Under platform height clearance adjusts from 11" to 15"
- Cantilever platform length: 48”
- Base dimensions: 38”W x 60”L
- Fixed outriggers spread 69”
- Rolls on two swivel and two rigid 8” casters
- Secured to the ground by two stabilizing jacks
- Open serrated plating for step and deck tread
- Deep gray enamel paint finish
- Option of powder coat safety orange available
