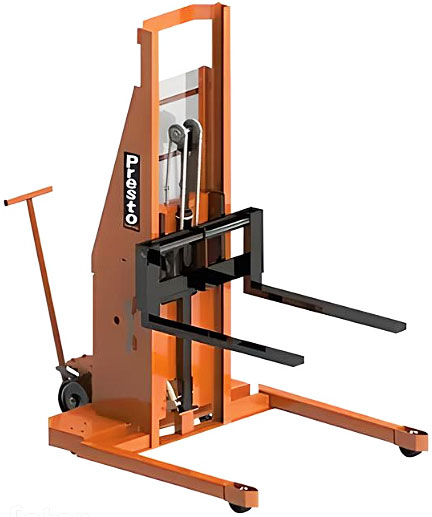

Presto PS50 Pallet Stackers are manual push with powered lift stackers that feature a straddle leg width that is fixed at 50” I.D. making them perfect for handling standard pallets (40”W) or open bottom skids weighing up to 2,000 or 2,700 LBS, depending on model. With maximum lift heights of 60", 62" and 72" depending on model, these Presto straddle stackers are ideal for loading / unloading trucks and transporting loads to where they are needed. The fork width is adjustable from 6½"to 30" O.D. (½" to 24" I.D.). Fifth wheel steering allows for improved maneuverability in narrow aisles. The forks are 36” long and the load center is 24”. Presto PS50 electric pallet stackers come standard with (1) 12v deep cycle battery and a 110v integral smart battery charger. Options include solid steel slip on platform, wired remote hand or foot control, fifth wheel with tiller, roller bed with winch for die pulling, eagle beak vertical drum grabber, boom with hook, ram, extended backplate, inverted forks, roller bed, custom platforms and more - see link below.
Presto PS50 stackers are built to order with an estimated lead time to leave the warehouse of 4 to 6 weeks.
Specifications:
- Fixed straddle leg width: 50" I.D. (56" O.D.)
- Capacity: 2,000 LBS or 2,700 LBS at 24" load center
- Lowered Fork Height 2/1/2" | Max. Lift Height 60", 62" or 72"
- 12v deep cycle lead acid battery & 110v, 12 amp on-board smart charger
- Max. Lift Height: of 60", 62" or 72" depending on model
- Turning Radius With 48" Load: 110" Aisle
- Adjustable fork width: ½" to 24" I.D. (6½"- 30" O.D.)
- Individual fork size: 3"W x 1.5" thick x 36"L (24" load center) for 1,500 & 2,000 LB models, 4"W x 1.5" thick x 36"L (24" load center) for 2,700 LB models
- Fifth wheel steering
- 5" dia. phenolic load wheels and 8" dia. steer wheels
- Hand-operated floor lock
- Warranty: 1 year on welded structural frame. All other parts are 90 days parts and 30 days labor.
Stacker Options:
To see all available options for Presto Stackers, Click on link or photo below to view selections & request a quote.
