Presto PS Electric Pallet Stackers

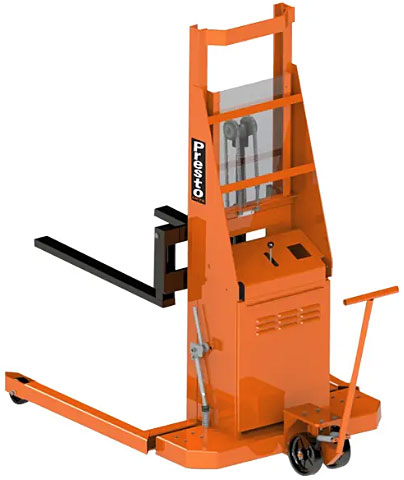

Presto PS Pallet Stacker
Presto PS262 Stacker
Presto Stacker Options
Click to see More Photos
Back to List
Add Item To Cart To Request Quote
SKU: PS262



Scroll Down for More Info

Presto PS Pallet Stackers are manual push with powered lift stackers that feature a straddle leg width that is fixed at 42” I.D. making them perfect for handling standard pallets (40”W) or open bottom skids weighing up to 2,000 or 2,700 LBS, depending on model. With maximum lift heights of 60", 62" and 72”, these Presto straddle stackers are ideal for loading / unloading trucks and transporting loads to where they are needed. The fork width is adjustable from 6½"to 30" O.D. (½" to 24" I.D.). Fifth wheel steering allows for improved maneuverability in narrow aisles. The forks are 36” long and the load center is 24”. Presto PS pallet stackers come standard with (1) 12v deep cycle battery and a 110v integral smart battery charger. Options include solid steel slip on platform, wired remote hand or foot control, fifth wheel with tiller, roller bed with winch for die pulling, eagle beak vertical drum grabber, boom with hook, ram, extended backplate, inverted forks, roller bed, custom platforms and more - see link below.

Presto PS stackers are built to order with an estimated lead time to leave the warehouse of 4 to 6 weeks.



Specifications:

  • Fixed straddle leg width: 42" I.D. (48" O.D.)
  • Capacity: 2,000 LBS or 2,700 LBS at 24" load center
  • Max Lift Height: 60", 62" or 72" depending on model
  • Turning Radius With 48" Load: 106" Aisle
  • Adjustable fork width: ½" to 24" I.D. (6½"- 30" O.D.)
  • Individual fork size: 3"W x 1.5" thick x 36"L (24" load center) for 2,000 LB models, 4"W x 1.5" thick x 36"L (24" load center) for 2,700 LB models
  • (1) 12v deep cycle lead acid battery & 110v, 12 amp on-board smart charger
  • Hand-operated floor lock
  • Fifth wheel steering
  • 5" dia. phenolic load wheels and 8" dia. steer wheels
  • Warranty: 1 year on welded structural frame. All other parts are 90 days parts and 30 days labor.



Stacker Options:

To see all available options for Presto Stackers, Click on link or photo below to view selections & request a quote.

Presto Stacker Options

Presto Stacker Options







Presto PS Series Pallet Stackers:
SKUCapacity/Desc.Lowered | Raised HeightOverall Size (WxLxH)Lift SpeedWeightPriceQty
PS2622000 LBS at 24" Load Center2-1/2" | 62"48" x 70" x 82"4"/sec875 LBSRequest Quote in Cart
PS2742000 LBS at 24" Load Center2-1/2" | 72"48" x 70" x 94"4"/sec925 LBSRequest Quote in Cart
PS27622700 LBS at 24" Load Center2-1/2" | 60"48" x 70" x 84"2"/sec1000 LBSRequest Quote in Cart
PS27742700 LBS at 24" Load Center2-1/2" | 72"48" x 70" x 96"2"/sec1045 LBSRequest Quote in Cart
