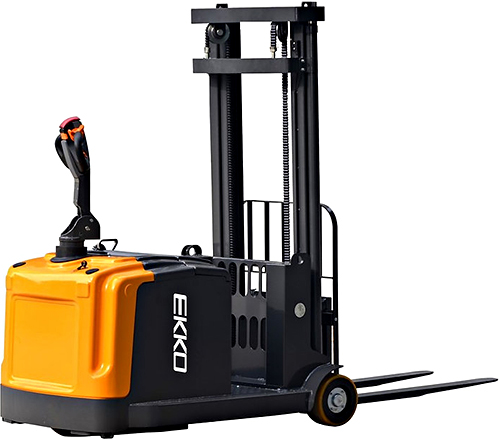

Ekko EK14-130 Counterbalance Walkie Stacker

Ekko EK14-130 Counterbalance Stacker
Click to see More Photos
Back to List
Call/Email For Pricing
SKU: EK14-130


Scroll Down for More Info

The Ekko EK14-130 counterbalance walkie stacker is a powered drive, powered lift stacker that features a counterbalance design with no wide front support legs. This design allows the stacker to operate easier in narrow isles and get close enough to load and unload pallets from racking that is not high enough off the floor to allow the front legs of a typical stacker to roll underneath. Fork width is adjustable and forks are tiltable for handling virtually any type of pallet or skid. This Ekko counterbalance pallet stacker at a 20" load center has a 3,300 LB capacity from 1.4" to 98", a 2,640 LB capacity from 98" to 118", and a 2,420 capacity from 118" to 130". Other key specifications include 45” forks, a 130" lift height, and a 57" turning radius for improved maneuverability. The ergonomic offset handle includes throttle, lift/lower controls, turtle mode switch, auto-reverse safety belly button switch, and horn. A 2.5kW drive motor propels the stacker at 3.5 mph loaded and 3.7 mph empty. A 2.5kW lift motor raises loads at 5.1” per second loaded and 4” per second unloaded. The Ekko EK14-130 counterbalance walkie stacker features all robotically welded steel construction for years of reliable service.

The capacity of the EK14-130 counterbalance pallet stacker is rated at a 20" load center. Lift capacity will be reduced when lifting standard 48" long pallets which have a load center of 24".


The Ekko EK14-130 counterbalance pallet stacker has an estimated lead time to leave the warehouse of 3 to 5 business days.



  • Counterbalance stacker with no front legs
  • Capacity At 20" Load Center (40"L pallet with evenly distributed load): 1.4" to 98" 3,300 LBS | 98" to 118" 2,640 LBS | 118" to 130" 2,420
  • Lowered Fork Height 1.4" / Max. Raised Fork Height 130"
  • Fork Tilt: 2° down / 5° up
  • Collapsed Mast height is 84" / Fully Extended Mast Height is 167"
  • Turtle mode for precise control
  • Ergonomic handle contains throttle, turtle mode switch, lift/lower controls, safety reversing belly switch, and horn
  • Electronic power steering
  • Gradability: 6° loaded / 10° unloaded
  • 57" turning radius for use in tight areas
  • 24v 210AH battery with 110v integral charger
  • Battery discharge indicator combination gauge
  • Fork width adjusts from 8.6” O.D. to 28.3” O.D.
  • Individual forks are 45” long x 4” wide x 1.4” thick
  • Curtis controller
  • Infinitely variable speed operation from 0 mph to 3.7 mph empty and 0 mph to 3.5 mph loaded. Travel speed is constant regardless of load.
  • Lift speed is 5.1 i.p.s. empty and up to 4 i.p.s. loaded
  • Lower speed is 4.7 i.p.s. empty and up to 5.3 i.p.s. loaded
  • Electro-magnetic braking for enhanced stopping power / Electronic neutral braking for accurate control
  • Drive Wheels 10" x 2.5" Polyurethane / Load Wheels 9.5" x 4.75" Polyurethane
  • Overall Size: 109"L x 39"W x 84"H (collapsed mast)
  • Service Weight: 3,840 LBS
  • Warranty: 1 year limited
