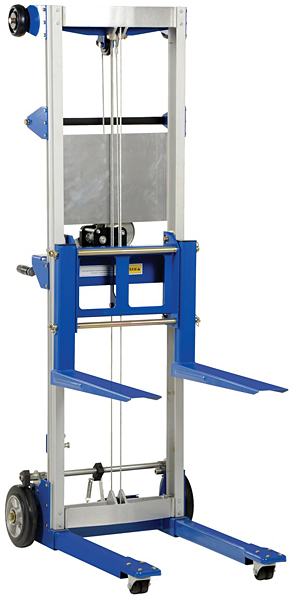

Vestil A-LIFT-R Hand Winch Lift Truck

Vestil A-LIFT-R Hand Winch Lift Truck
Vestil A-LIFT-R-HP Hand Winch Lift Truck

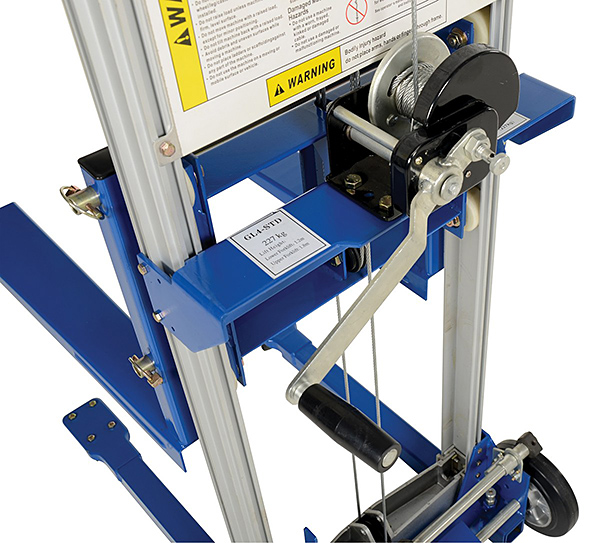

A-LIFT-R Winch Close Up

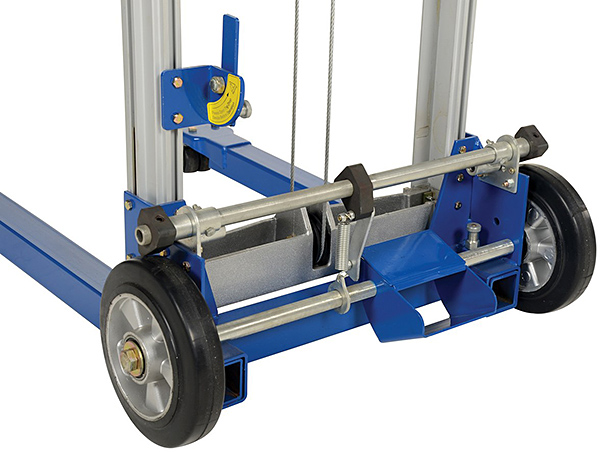

A-LIFT-R Wheels Close Up
Vestil A-LIFT-DK Deck Platform
Vestil A-LIFT-LAD Retractable Ladder
Back to List
$596.00 - $833.00
SKU: A-LIFT-R

Vestil A-LIFT-R Hand Winch Lift Truck is a portable materials lift designed to lift material to and from shelves, move equipment, install ceiling/wall appliances, as well as handle numerous other tasks. The 4" wide by 1¾" thick steel forks measure 22" long. The raise and lower function is operated using a hand-crank winch that features a reversible handle and a hold-down device for securing the carriage during transport. Forks are raised 1" per complete hand crank rotation. The forks can be inverted to provide two different heights. The A-LIFT-R rolls smoothly on two 8" non-marking rear wheels and two 2" front swivel casters. Made of steel-and-aluminum.



The A-LIFT-R Hand Winch Lift Truck normally leaves the warhouse in 3 business days.



Specifications:

  • 500 LB Capacity
  • Lift function operated via a hand-crank winch (lifts forks 1" per crank)
  • Forks can be inverted to provide two different lift heights
  • Forks in regular/down position: Lowered Height is 3½" / Raised Height is 47"
  • Forks in inverted/up position: Lowered Height is 23½" / Raised Height is 67"
  • Leg Straddle Width is fixed at 13"W I.D. / 21½"W O.D.
  • Individual Fork Size: 4" W x 22" L x 1¾" Thick
  • Fixed steel forks (do not adjust horizontally)
  • Caster brakes hold lift truck in place while loading and unloading
  • (2) 8" non-marking rear wheels and (2) 2" front swivel wheels
  • Overall Size: 24"W x 35"L x 68¾"H
  • Weight: 191 LBS



Options:

  • Deck platform - fits over forks (Model A-LIFT-DK).
  • 10" pneumatic rear wheels (Model A-LIFT-PN).
  • Aluminum Retractable 18"W x 68"H Ladder with 11" rung spacing (Model A-LIFT-LAD).







Vestil A-LIFT-R Hand Winch Lift Truck:
SKUCapacity/Desc.WeightPriceQty
A-LIFT-R500 LBS191 LBS ($596.00)
Options:
SKUCapacity/Desc.WeightPriceQty
A-LIFT-DKDeck platform 20"W x 24"L (fits over forks)25 LBS ($79.00)
A-LIFT-PN10" pneumatic rear wheels 20 LBS ($48.00)
A-LIFT-LADAluminum Retractable 18"W x 68"H Ladder17 LBS ($237.00)
